Description:
Hybrid Vacuum System with Ejectors and Liquid Ring Vacuum Pump for Edible Oil Deodorization Plant in continuous service using mixing (direct contact) condensers and chilled water.

EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.

Capacity:

Suction Pressure: 2 mbar abs.
Suction Flow: 80 kg/h steam + 4 kg/h air + 1 fatty acids.
Suction Temperature: 80ºC.
Cooling water temperature: 4ºC (max.).
Motive steam pressure: 8 bar g (dry saturated) (min).

Supply:
Main Equipment: Boosters (Ejectors) in carbon steel, with nozzle in SS304. Mixing Condensers in carbon steel, with water nozzle in SS316. Liquid Ring Vacuum Pump completely in stainless steel SS304.

With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

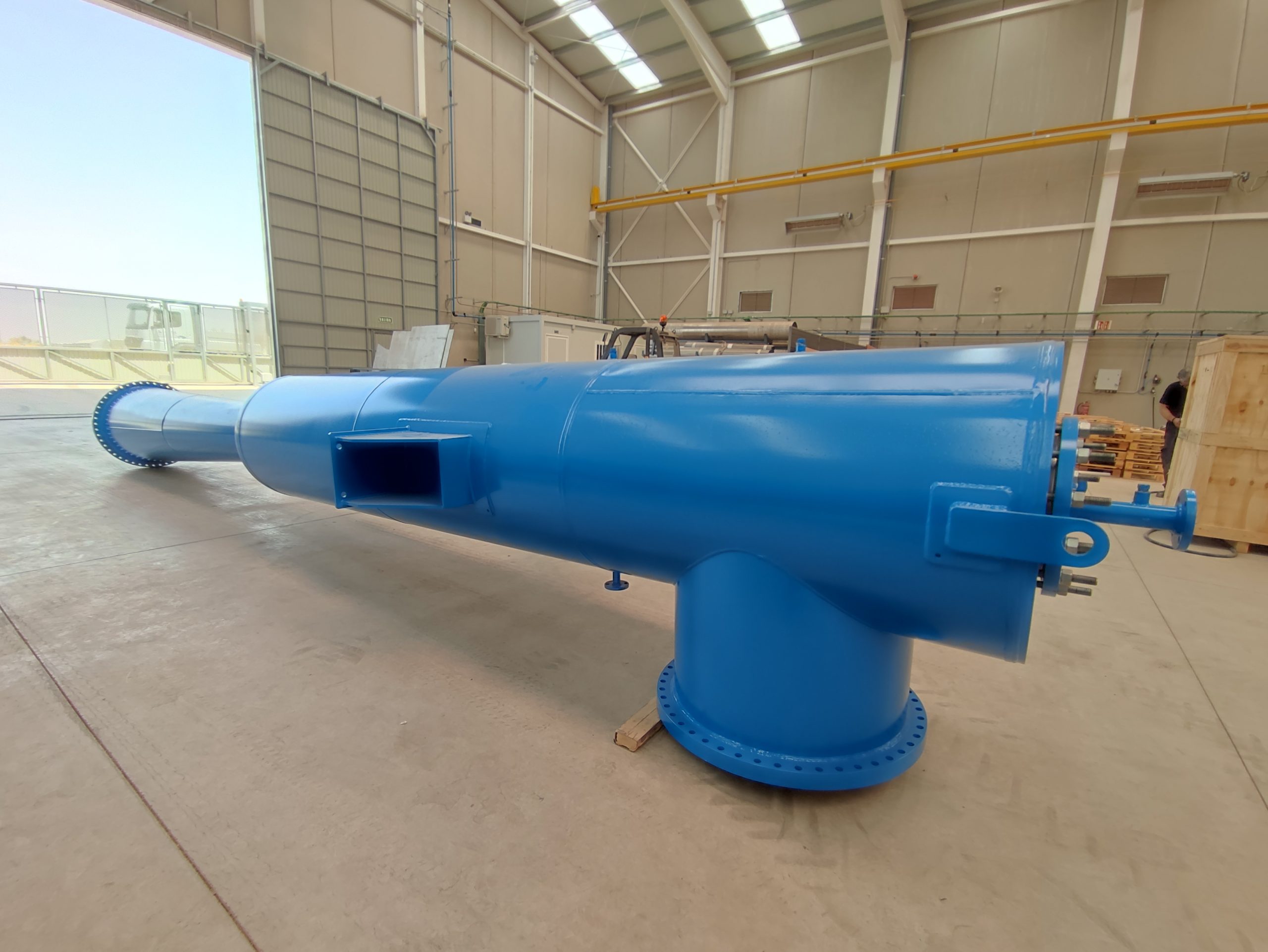

Booster with jacket

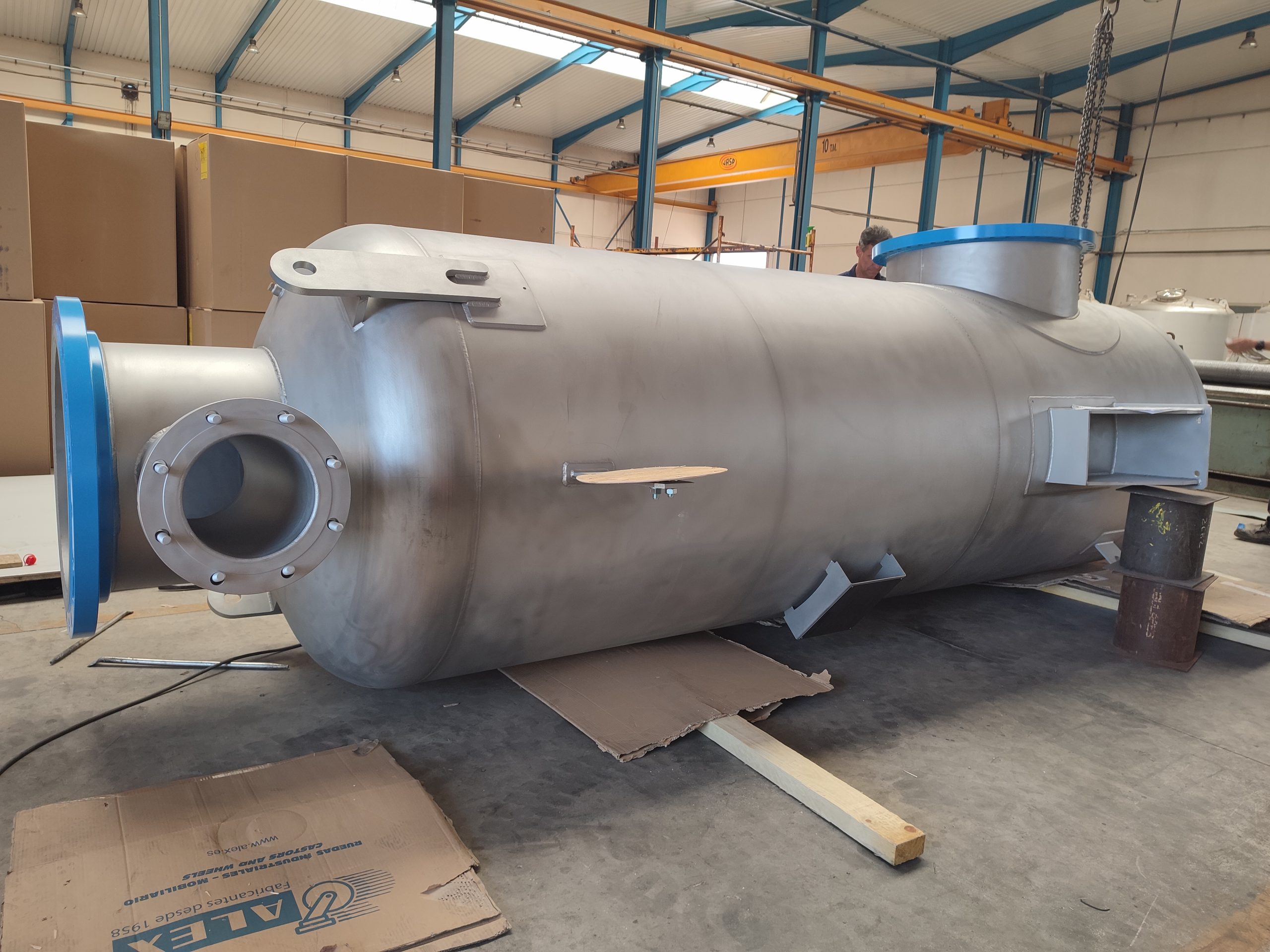

Main mixing condenser

Booster without jacket

Secondary mixing condenser

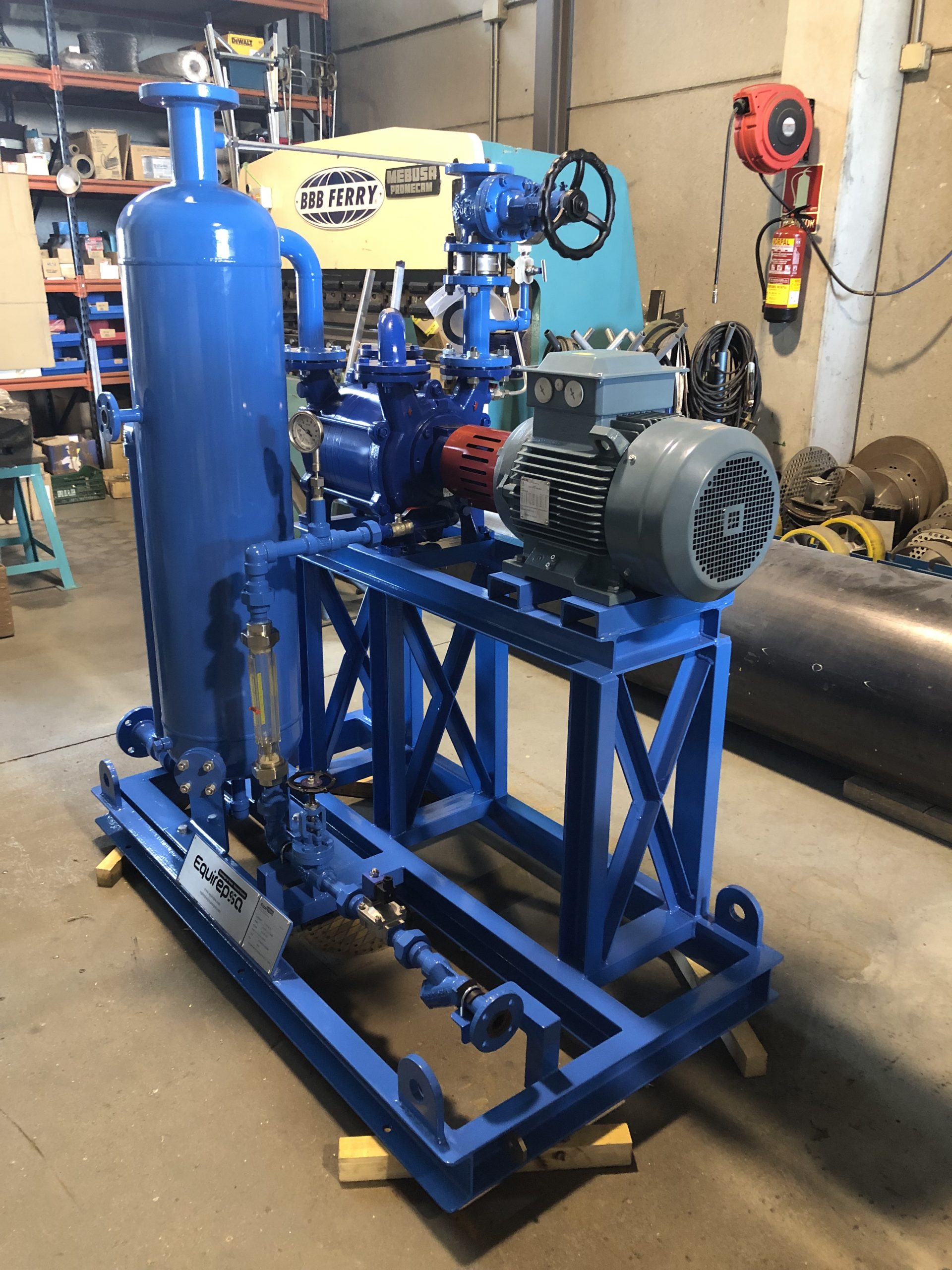

Vacuum system with pump

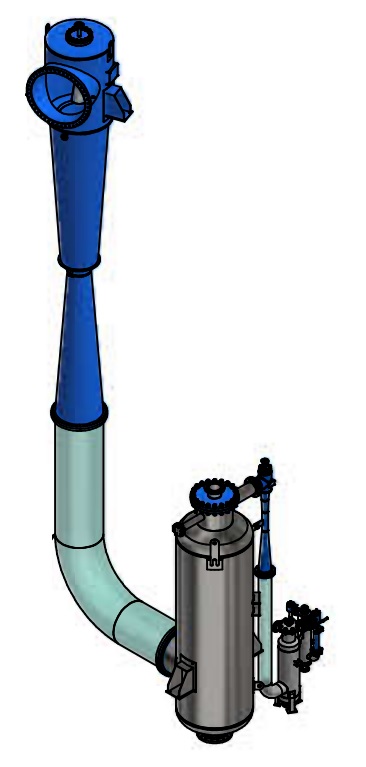

3D Detail of the Equipment: Boosters + Condensers

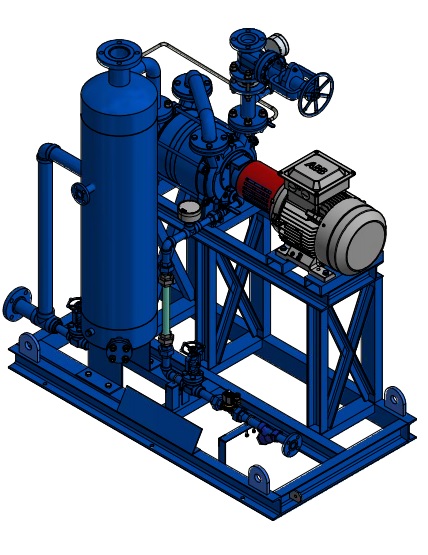

3D Detail of the Equipment: Vacuum system with pump

Description:
Static Mixers for a Biofuel Petrochemical Plant. Materials: SS316 and Carbon Steel lined with PTFE and PTFE internals, depending on the fluids involved for each case.

EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.

Capacity:

Depending on each equipment, they promote a homogenization of a mixture comprising Animal Fat, Water and Sulfuric Acid, or Citric Acid and Caustic Soda.

Supply:
7 Static Mixers with connections ANSI WN 150#-RF with diameters 3” and 1”.

With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Static Mixers

3D Detail of the equipment

Description:
Mixing Condenser for Edible Oil Plant in continuous service.

EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.

Capacity:

• Steam flowrate to be condensed: 1200 kg/h.
• Operating pressure: 13-15 mbar abs.
• Cooling water temperature: 5ºC (max.).

Supply:
Mixing Condenser in SS304.



With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Mixing Condenser

3D Detail of the equipment

Description:
3 x Vacuum Systems for Edible Oils Bleaching Plants.

EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.

Capacity:

• Suction pressure: 50 mm Hg abs.
• Steam suction flow: 270 kg/h.
• Air suction flow: 20 kg/h.
• Temperature: 32ºC (max.).
• Motive steam pressure: 8 bar g (dry saturated) (min.).

Supply:
Ejectors and Mixing Condensers, all completely in SS316.



With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Vacuum Systems

3D Detail of the equipment

Description:
2 Cyclone Separators for a chemical plant completely in SS316. .

EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.

Capacity:

Cyclone separation of entrainment and solid particles in streams of 20 kg/h and 400 kg/h of gas.
Pressure: 100-1013 mbar abs.

Supply:
2 Cyclone Separators



With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Cyclone Separators

3D Detail of the equipment

Description:
Steam Syphon for pits emptying in a chemical industrial plant completely in SS316L.

EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.

Capacity:

Water flowrate to be evacuated: 1000 kg/h.
Suction pressure: -0,3 barg.
Suction temperature: 20ºC.
Motive Fluid: Steam at 6 barg (dry saturated).

Supply:
Steam Syphon with their respective flanges for connection to suction fluid and discharge lines.



With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Steam Syphon

3D Detail of the equipment

Description:
Vacuum System for extraction of a mixture of steam and air from a Turbine Condenser in a Petrochemical Plant.



EQUIREPSA  designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.

Capacity:

Suction Pressure: 70 mbar abs
Steam Suction Flow: 75 kg/h
Air Suction Flow: 25 kg/h
Temperature: 35.4ºC

Supply:
Hogging Ejector.
Holding Ejectors.
Surface Condensers.
Silencer.
Valves & Instrumentation.
Piping and Assembly in 2 baseframes.

With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Vacuum System

3D Detail of the equipment

Description:
Vacuum Group for extraction of noncondensables from a reactor/crystallizer in discontinuous operation.



EQUIREPSA  designs and supplies customized equipment, including noise attenuation and fluid-dynamic design, general arrangement drawing, material certificates, installation, and manual and operating instructions for easy installation at customer´s premises.

Capacity:

Suction Pressure: 30 mbar abs.
Temperature: ≤ 100 ºC.
Suction flowrate: 10 kg/h.

Supply:
Steam Ejector
Hydraulic Exhauster
Recirculation Pump
Plate Heat Exchanger
Valves & Instrumentation
Piping
Baseframe

With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Vacuum System

3D Detail of the equipment

Description:
1 Hydraulic Ventilator for Chemical Plant.

EQUIREPSA  designs and supplies customized equipment, including noise attenuation and fluid-dynamic design, general arrangement drawing, material certificates, installation, and manual and operating instructions for easy installation at customer´s premises.

Capacity:
Motive flowrate: 1.4 m³/h of Water.
Motive Fluid pressure: Water at 4 bar g

Supply:
1 Hydraulic Ventilator. Manufactured all in SS316.

With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Hydraulic Ventilator

3D Detail of the equipment

Description:
Fatty Acids Scrubber in stainless steel SS304 for the recovery of fatty acids in a Glycerolysis Plant.

EQUIREPSA  designs and supplies customized equipment, including noise attenuation and fluid-dynamic design, general arrangement drawing, material certificates, installation, and manual and operating instructions for easy installation at customer´s premises.

Capacity:
Body diameter: DN1000. Gases inlet: DN400.

Supply:
Fatty Acids Scrubber with its related technical documentation and its transport to plant site.

With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Fatty Acids Scrubber

3D Detail of the equipment

Description:
Silencer completely in SS304 for atmospheric discharge on a cooking and cooling process at a food plant.

EQUIREPSA  designs and supplies customized equipment, including noise attenuation and fluid-dynamic design, general arrangement drawing, material certificates, installation, and manual and operating instructions for easy installation at customer´s premises.

Capacity:
Atmospheric discharge of 1110 kg/h of air and steam mixture, keeping the noise level below 85 dB (A) at 1 m.

Supply:
1 Silencer according to above described with its related technical documentation.

With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Silencer

3D Detail of the equipment

Description:
Two-Stage Vacuum System for vacuum generation at a Petrochemical Plant.

EQUIREPSA  designs and supplies customized equipment, including noise attenuation and fluid-dynamic design, general arrangement drawing, material certificates, installation, and manual and operating instructions for easy installation at customer´s premises.

Capacity:
Suction Pressure: 25 mmHg abs.
Motive Steam Flow: 400 kg/h at 15 barg.
Suction Flow: 89 kg/h.
Suction Temperature: 80ºC.

Supply:
First and Second Stage Ejectors, Inter and Post Shell and Tube Condensers, Skid Assembly including Baseframe, Interconnecting Piping, Valves & Instruments.

With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Vacuum System

3D Detail of the equipment
