Description:
Static Mixer completely in SS316L for air + butane mixing for a Petrochemical Plant

EQUIREPSA  designs and supplies customized equipment, including noise attenuation and fluid-dynamic design, general arrangement drawing, material certificates, installation, and manual and operating instructions for easy installation at customer´s premises.

Capacity:
Flowrate:  90000 kg/h of air + butane.
Max. pressure drop: 0.05 bar.

Supply:
1 Static Mixer with beveled ends to be welded on site.

With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

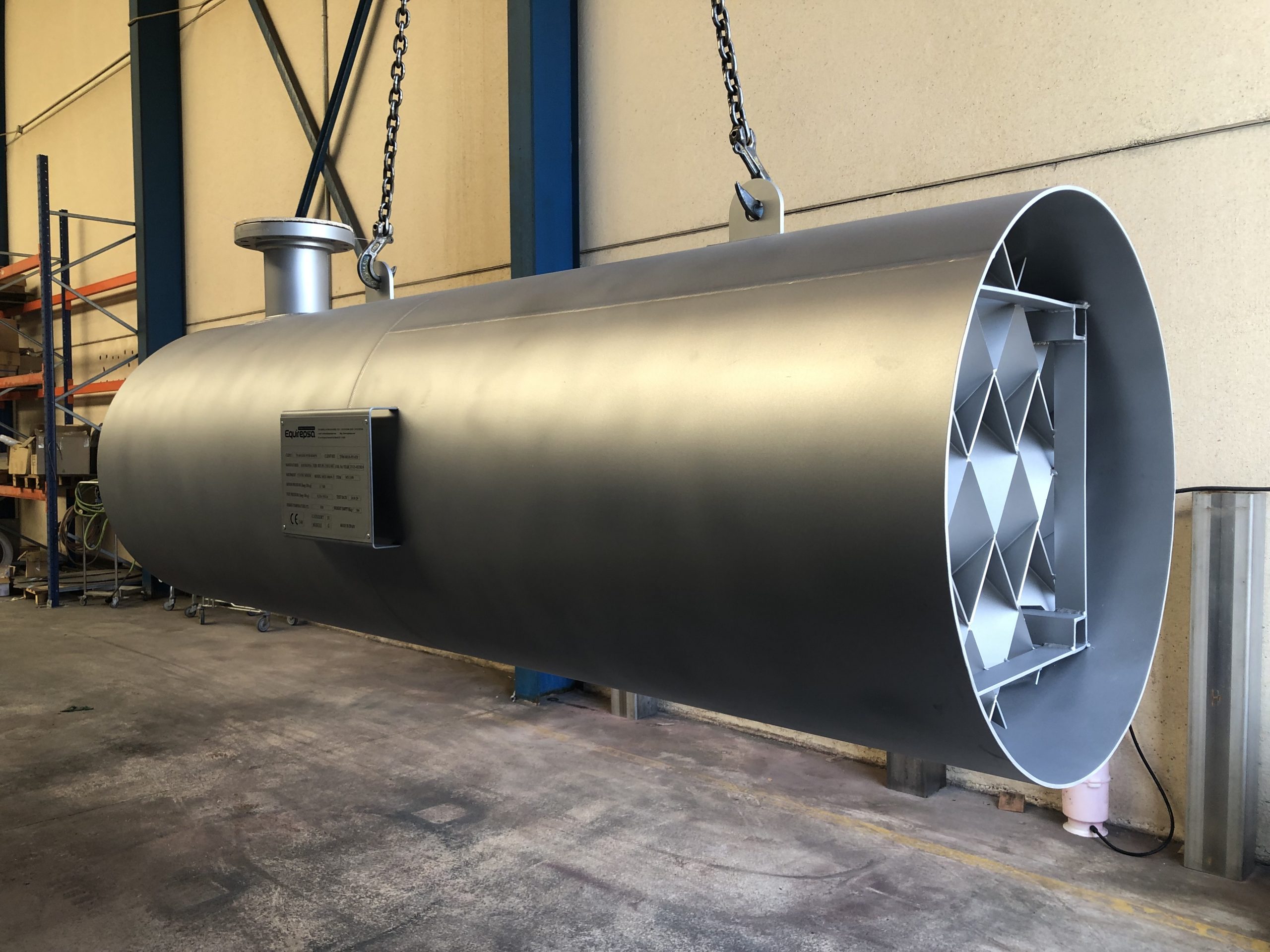

Static Mixer with beveled ends

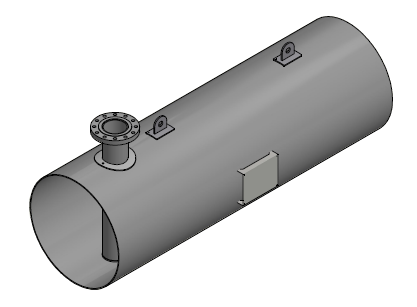

3D Detail of the equipment

Description:
Vacuum System for extraction of a mixture of steam and air from a Turbine Condenser in a Power Plant.

EQUIREPSA  designs and supplies customized equipment, including noise attenuation and fluid-dynamic design, general arrangement drawing, material certificates, installation, and manual and operating instructions for easy installation at customer´s premises.

Capacity:
Suction Pressure: 30 mbar abs.
Steam Suction Flow: 87,6 kg/h.
Air Suction Flow: 40,8 kg/h.
Temperature: 19,9ºC.

Supply:
Holding Ejectors, Surface Condensers, Valves & Instrumentation, Piping and Assembly in 1 skid. Hogging Ejector and Silencer supplied as loose parts.

With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

Holding Vacuum System

Hogging Ejector and Silencer

3D Detail of the Holding Vacuum System

3D Detail of the Silencer and Hogging Ejector
