Description:

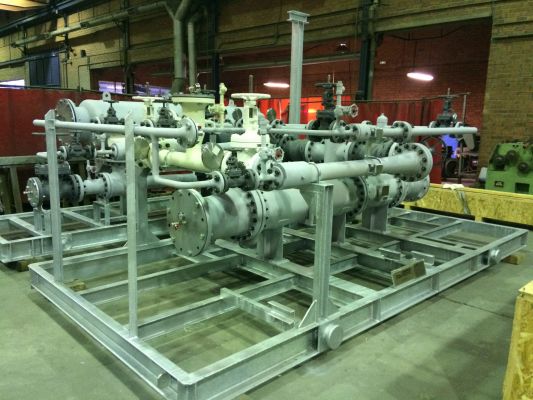

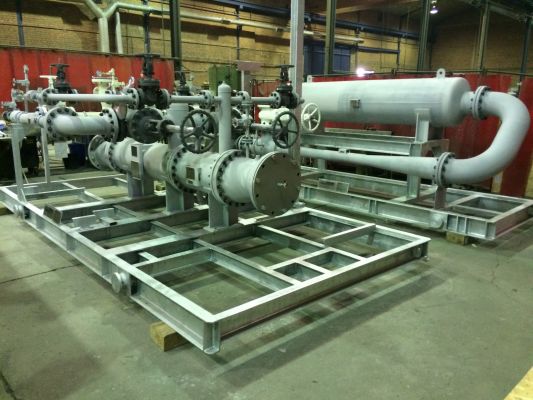

Vacuum System for extraction of a mixture of steam and air from a Turbine Condenser in a Petrochemical Plant.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Capacity:
Suction Pressure: 70 mbar abs
Steam Suction Flow: 75 kg/h
Air Suction Flow: 25 kg/h
Temperature: 35.4ºC
Supply:
Hogging Ejector.
Holding Ejectors.
Surface Condensers.
Silencer.
Valves & Instrumentation.
Piping and Assembly in 2 baseframes.
With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.
