Description:
Three-stage Vacuum System with Ejectors for Drying of Toilet Soap in continuous service using mixing (direct contact) condensers. Start-up ejectors were also supplied to reduce start-up time for this plant and other plants with the same application.
EQUIREPSA designs and supplies customized equipment, including noise attenuation and fluid-dynamic design, general arrangement drawing, material certificates, installation, and manual and operating instructions for easy installation at customer´s premises.
Capacity:
Suction Pressure: 15 mmHg abs.
Suction Flow: 400 kg/h steam.
Cooling water temperature: 26ºC (max.).
Motive steam pressure: 8 bar g (dry saturated) (min.).
Supply:
Main Equipments: Ejectors and Mixing Condensers in stainless steel SS304.
With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.
First Stage Booster

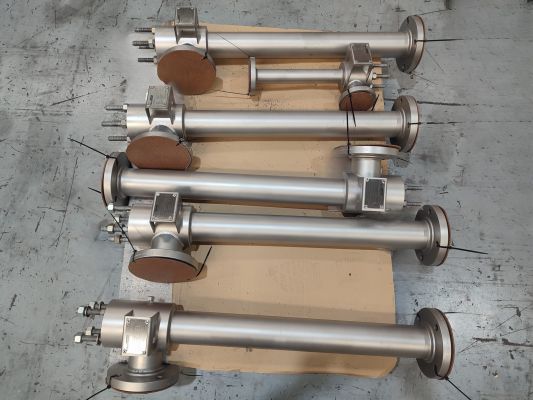

Holding & Hogging Steam Ejectors

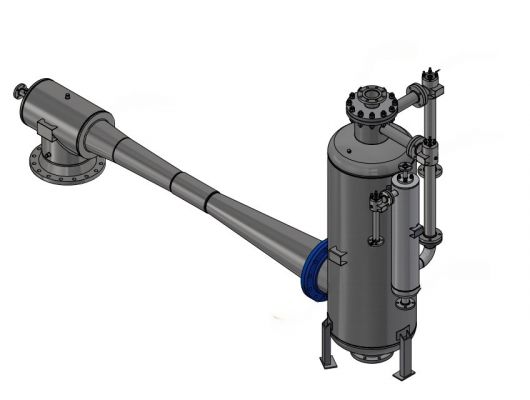

3D Detail of Vacuum System
