Description:
Steam Ventilator for Petrochemical Industry.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Capacity:
• Suction pressure: 0.95 bar abs.
• Suction capacity: 3900 kg/h of air.
• Suction temperature: 30 ºC.
• Motive steam pressure: 6 bar abs (dry saturated).
Supply:
Steam Ventilator in SS304.
With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

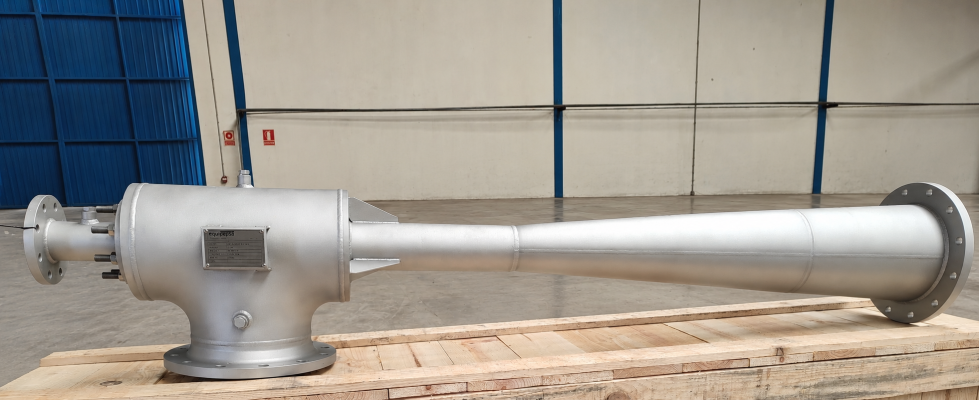

Steam Ventilator

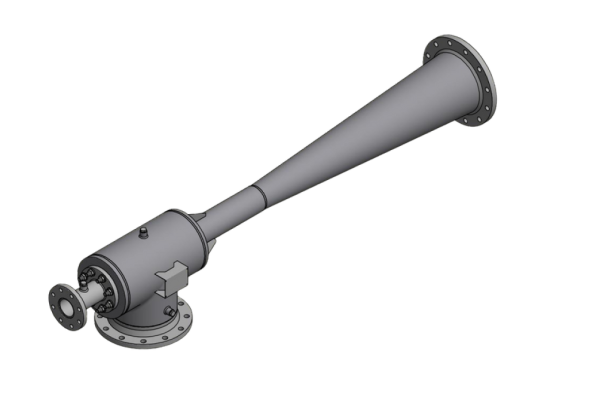

3D Detail of the Equipment
