Vacuum Group for Edible Oils Bleaching Plant in continuous service.
EQUIREPSA designs and supplies customized equipment, including technical data sheet, general arrangement and assembly drawings, material certificates, installation manual and operating instructions for easy installation at customer´s premises.
Suction pressure: 60 Torr (80 mbar abs)
Suction capacity: 600 kg/h steam + 14 kg/h air + 4 kg/h fatty acids.
Inlet temperature: 70-100ºC
Cooling water temperature: 33ºC (max.)
Main Equipments: Ejectors, Shell and Tube Condenser, all completely in SS304.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

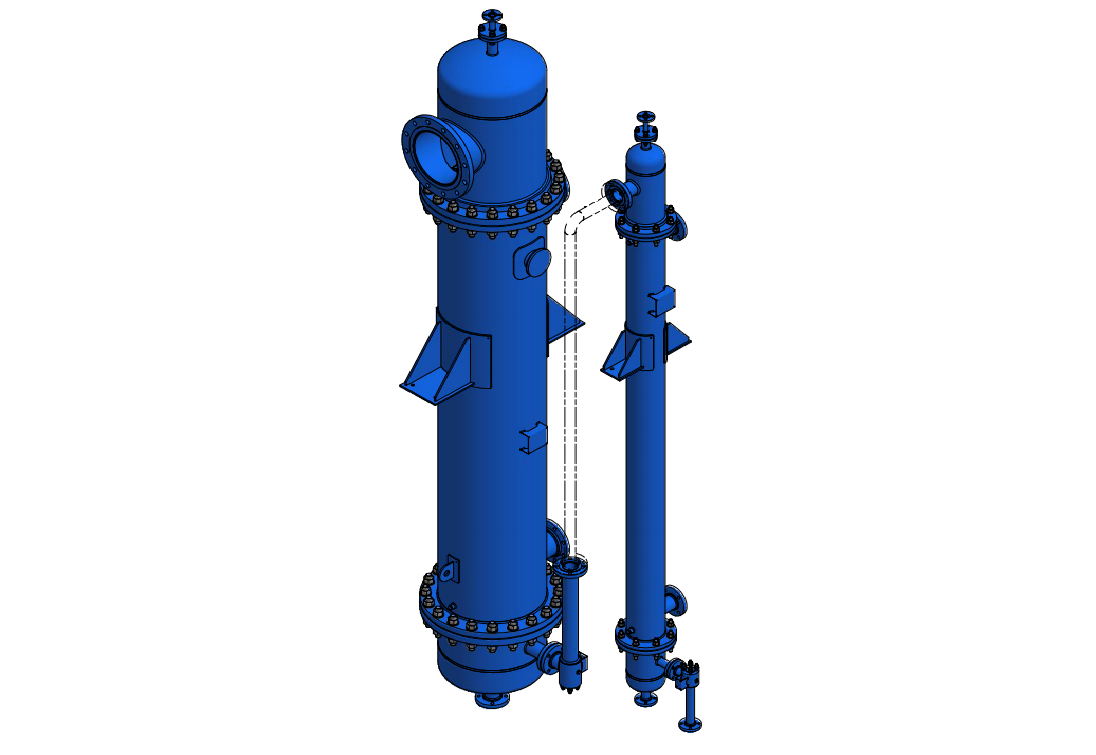

3D Detail of the Vacuum System
Main Shell and Tube Condenser
