Vacuum System for Black Liquor Evaporation in a Pulp & Paper Plant

Vacuum System for extraction of a mixture of steam and air from a Condenser in a Pulp & Paper Plant.

EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawing of each component, group assebly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.

Suction pressure: 0,126 kg/cm2 abs.
Suction flow: 421 kg/h steam + 350 kg/h air.
Suction temperature: 42ºC.
Cooling water temperature: 30ºC (max.).
Motive steam pressure: 12,35 kg/cm2 abs (dry saturated) (min.).

Main equipment: Ejectors in SS304L, Shell and Tube Surface Condensers in SS304L (process side) and carbon steel (cooling water side).

With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

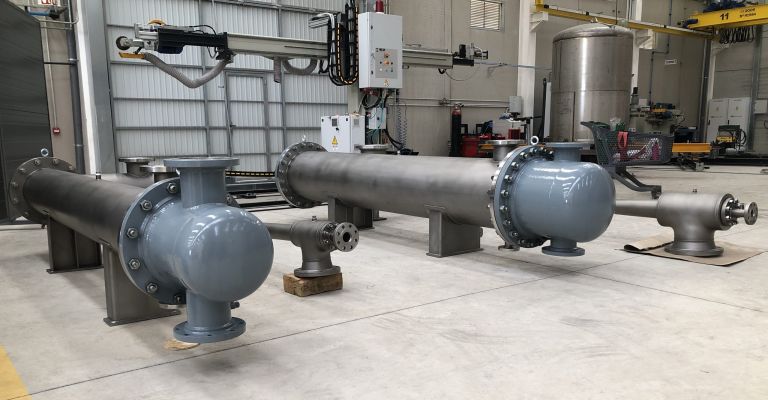

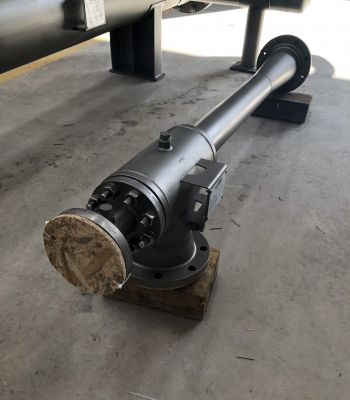

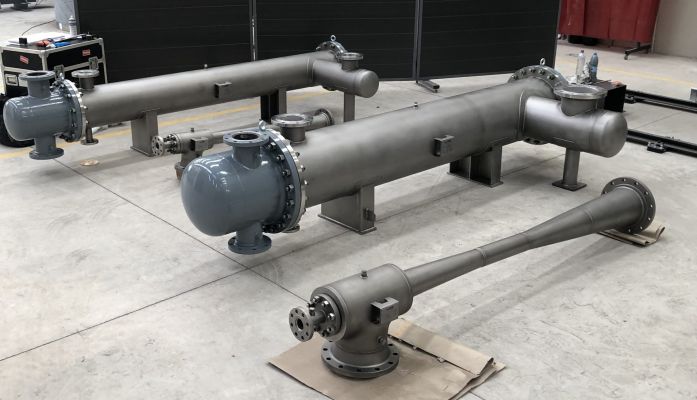

Ejectors and Condensers of the Vacuum System

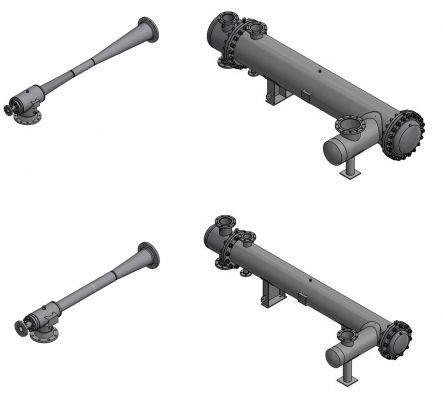

3D Detail of the Equipment
