Description:
Ejector for extraction of a mixture of steam and air from a Condensate Storage Tank in a Power Plant. Materials: CS with nozzle in SS304.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Capacity:
Suction Pressure: 50 mbar abs
Steam Suction Flowrate: 200 kg/h
Temperature: 33ºC
Supply:
Ejector and Valves.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.
Vacuum Ejector

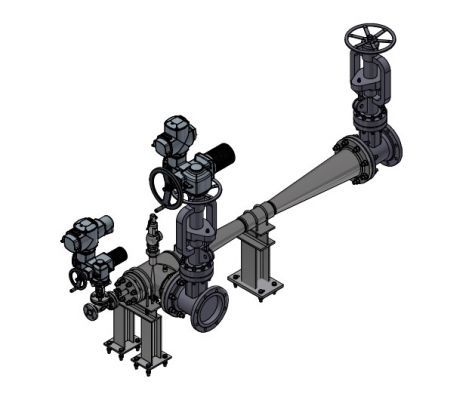

3D Detail of the Equipment
