Description:
Hybrid Vacuum System for extraction of non condensable gases from the turbine condenser for a Geothermal Power Plant. Materials: Completely in SS316L.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy installation at customer´s premises.
Capacity:
Suction pressure: 83 mbar abs.
Suction flowrate: 68000 m3/h.
Supply:
Steam Ejectors and Mixing Condensers + Skids with Liquid Ring Vacuum Pumps + Separator Tanks. Liquid Ring Vacuum Pumps have been supplied in skid assembled on baseframe and together with valves, instruments and interconnecting piping.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.
Vacuum System

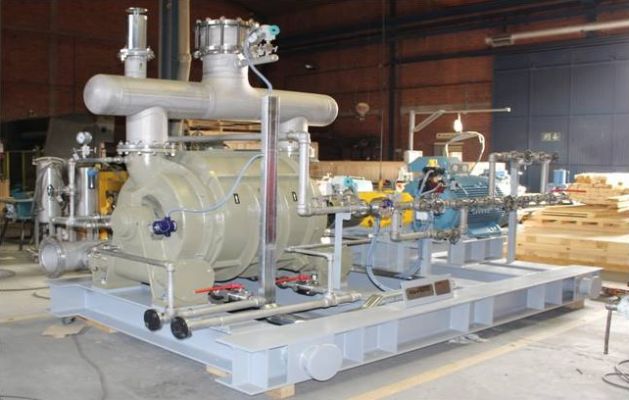

Liquid Ring Vacuum Pump System
Mixing Condenser and Ejectors
3D Detail of the Liquid Ring Vacuum Pump System

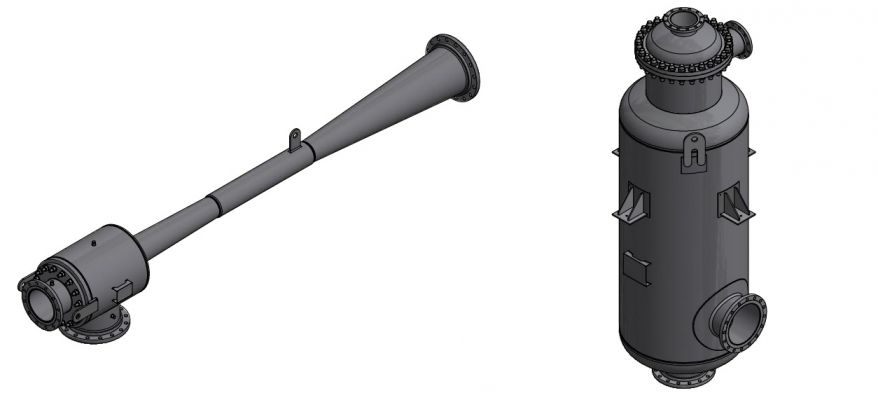

3D Detail of the Ejector and Mixing Condenser
