Hybrid Vacuum System with Chilled Water for Edible Oil Deodorizing Plant
Hybrid Vacuum System with Chilled Water for Edible Oil Deodorizing Plant in continuous service.
EQUIREPSA designs and supplies customized equipment including technical documentation: Datasheet, general arrangement drawing of equipment, mechanical calculation, welding dossier, materials certificates and user manual with instructions for installation and operation.
Suction pressure: 3 mbar abs.
Suction flow: 160 kg/h steam + 16 kg/h air + 20 kg/h fatty acids.
Suction temperature: 80ºC.
Cooling water temperature: 5ºC (max.).
Motive steam pressure: 8 bar g (dry saturated) (min.).
Main equipments: Boosters in carbon steel CS with nozzle in SS304, Barometric Condensers in stainless steel SS304 and Vacuum Pump in cast iron.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

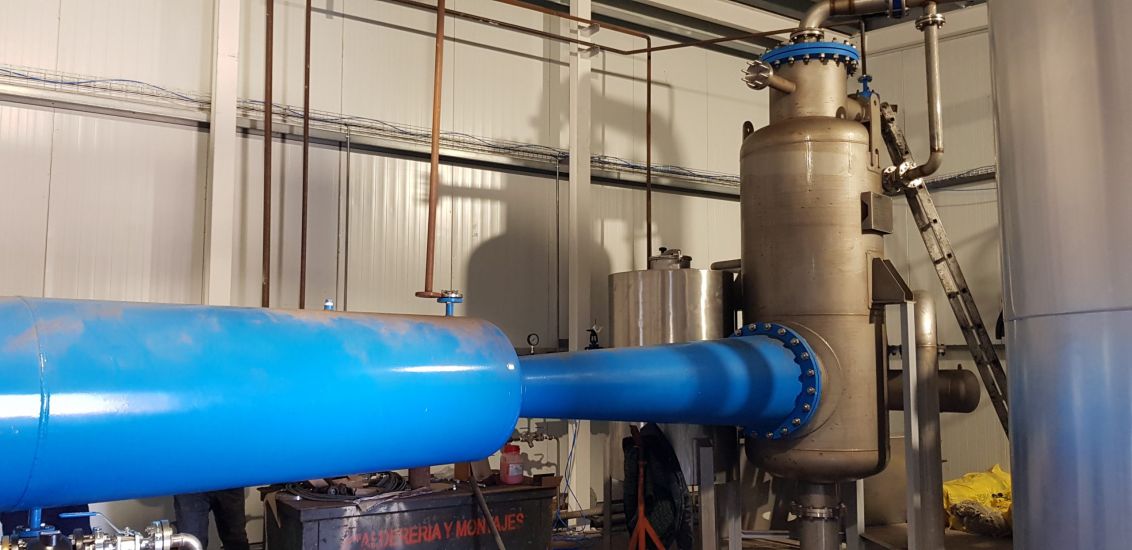

Main Booster and Main Condenser
Secondary Booster and Condensers / Vacuum System with Pump

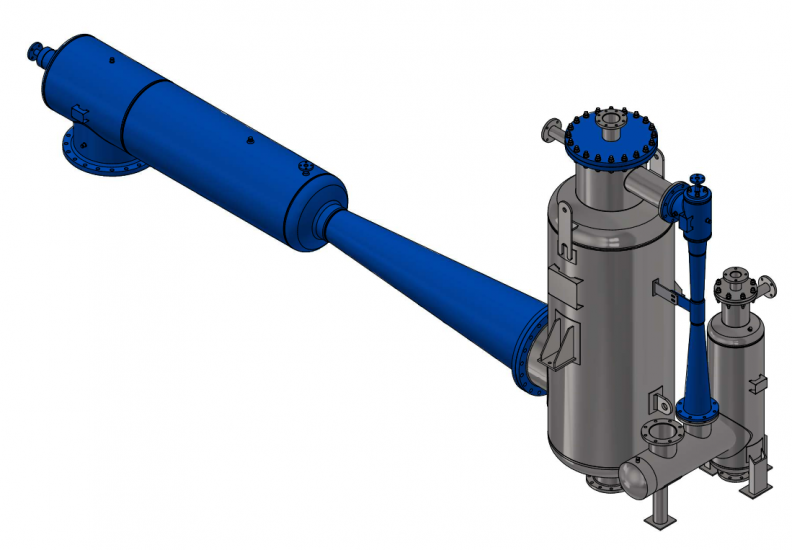

3D Detail of Vacuum System

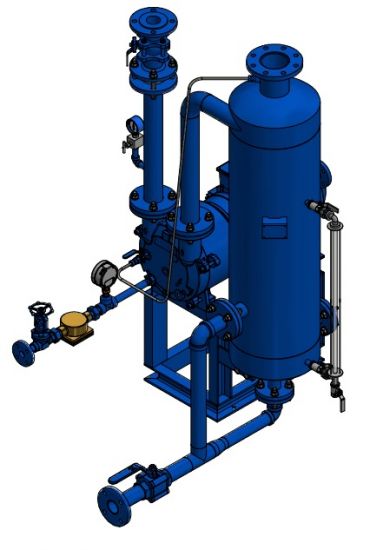

3D Detail of Vacuum System with Pump
