In Line Steam Heaters for Reactor’s Jackets

2 Steam Heaters for heating the Reactor’s jackets (one Steam Heater per Reactor) in a Chemical Industrial Plant.
Materials: Completely in SS316L.

EQUIREPSA designs and supplies customized equipment including technical documentation: Datasheets, general arrangement drawing of each equipment, welding dossier, materials certificates and user manual with instructions for installation and operation.

Water flowrate to be heated: 8000 kg/h.
Water pressure: 3 bar g.
Steam heating pressure: 5 bar g (dry saturated).
Size: DN40.

2 Steam Heaters. Equipment include flanges for connection to motive fluid, suction and discharge.

With own technology, EQUIREPSA offers customized solutions for every case and customer, which includes: design, manufacture, supply of equipment  and supervision of commissioning and start-up (under request) of our equipment.

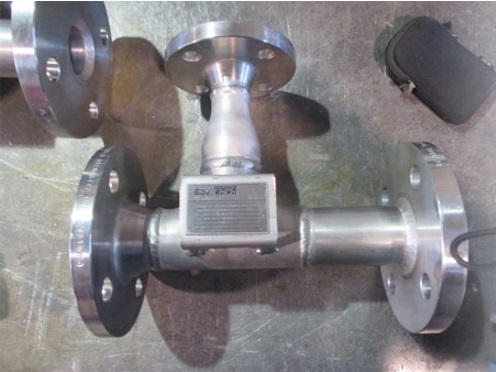

In Line Steam Heater

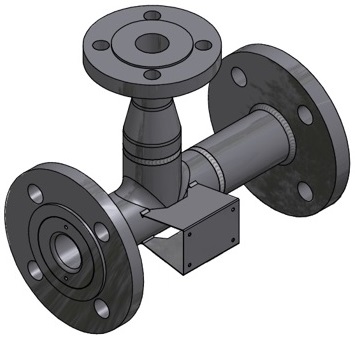

3D Detail of In Line Steam Heater
