Mechanical Desuperheater for Chemical Plant

Mechanical Desuperheater for Chemical Plant. Materials: Completely in AISI-316.

EQUIREPSA designs and supplies customized equipment including technical documentation: Datasheet, general arrangement drawing of equipment, mechanical calculation, welding dossier, materials certificates and user manual with instructions for installation and operation.

Superheated steam flowrate: 39312 kg/h.
Water flowrate: 2004 kg/h.
Inlet steam temperature: 361ºC.
Outlet steam temperature: 316ºC.

Main equipment: Mechanical Desuperheater with water nozzles. Desuperheater includes flanges for connection to steam and water pipes.

With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

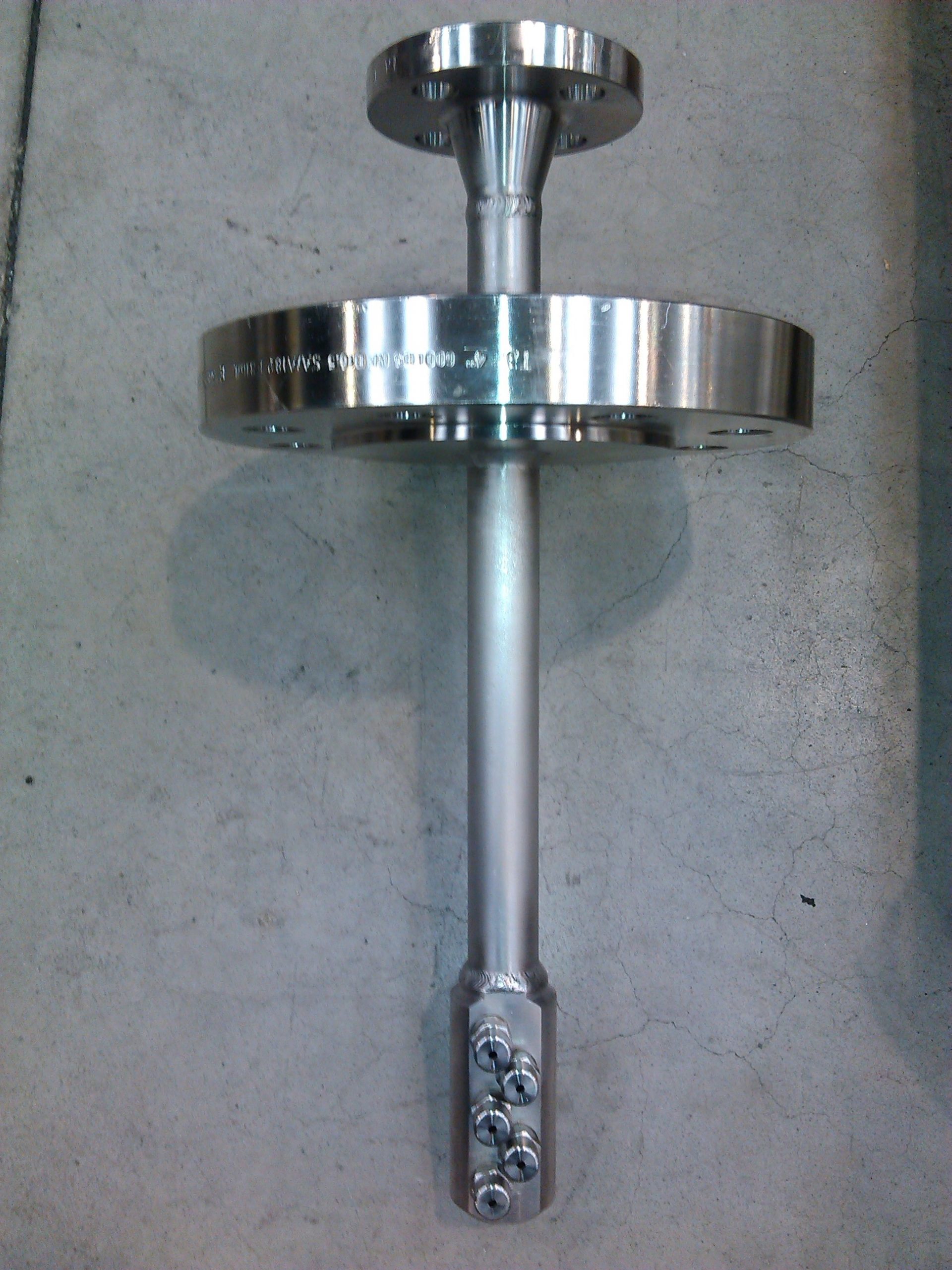

Mechanical Desuperheater

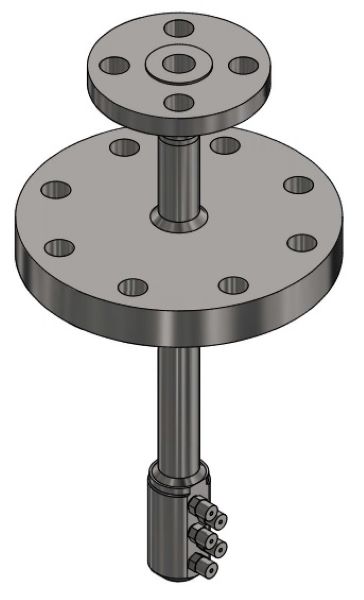

3D Detail of the Equipment
