Vacuum System for extraction of a mixture of steam and air from a Turbine Condenser in a Petrochemical Plant.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing for holding and hogging units, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Suction pressure: 70 mbar abs
Steam Suction Flow: 75 kg/h
Air Suction Flow: 25 kg/h
Temperature: 35,4 ºC

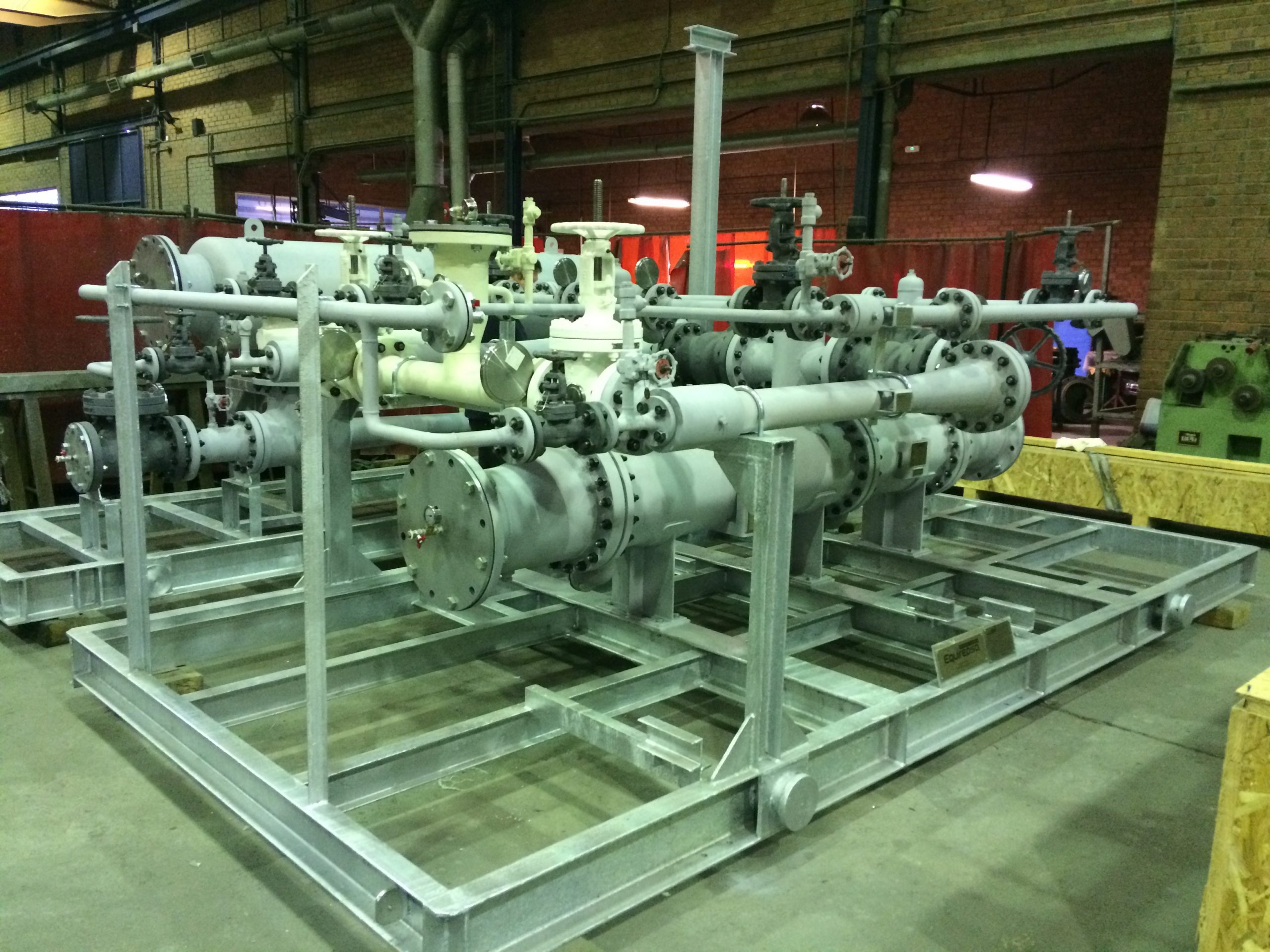

Hogging Ejector and Holding Ejectors, Surface Condensers, Silencer, Valves & Instrumentation, Piping and Assembly in 2 separated baseframes for holding and hogging units.
With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

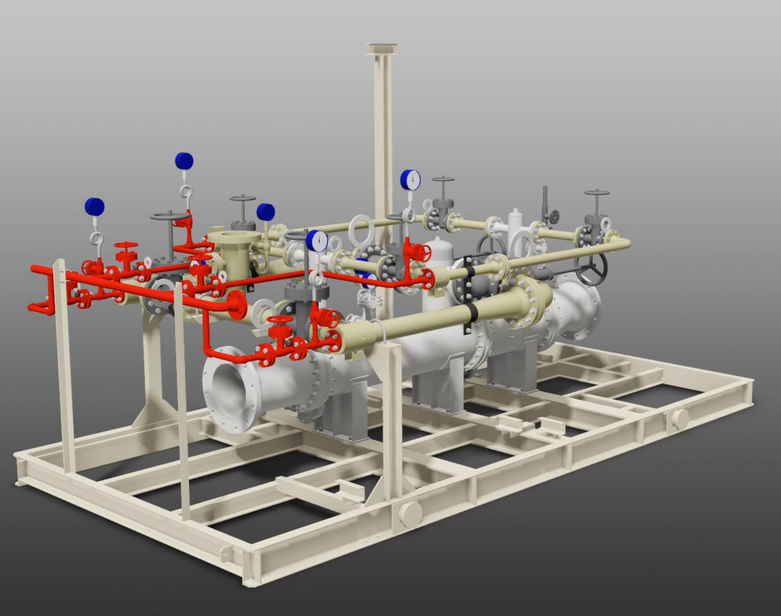

3D Detail of the Equipment
