Power Plant Hybrid Vacuum System

Hybrid Vacuum System for extraction of a mixture of steam and air in a Power Plant.

EQUIREPSA designs and supplies customized equipment including technical documentation: Datasheet, general arrangement drawing of equipment, mechanical calculation, welding dossier, materials certificates and user manual with instructions for installation and operation.

Suction Pressure: 34 mbar abs.
Steam Suction Flow: 18 kg/h.
Air Suction Flow: 8,2 kg/h.
Temperature: 22ºC.

Steam Ejectors, Surface Condensers, Vacuum Pumps, Air Coolers, Valves & Instrumentation, Piping and Assembly in 1 skid.

With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

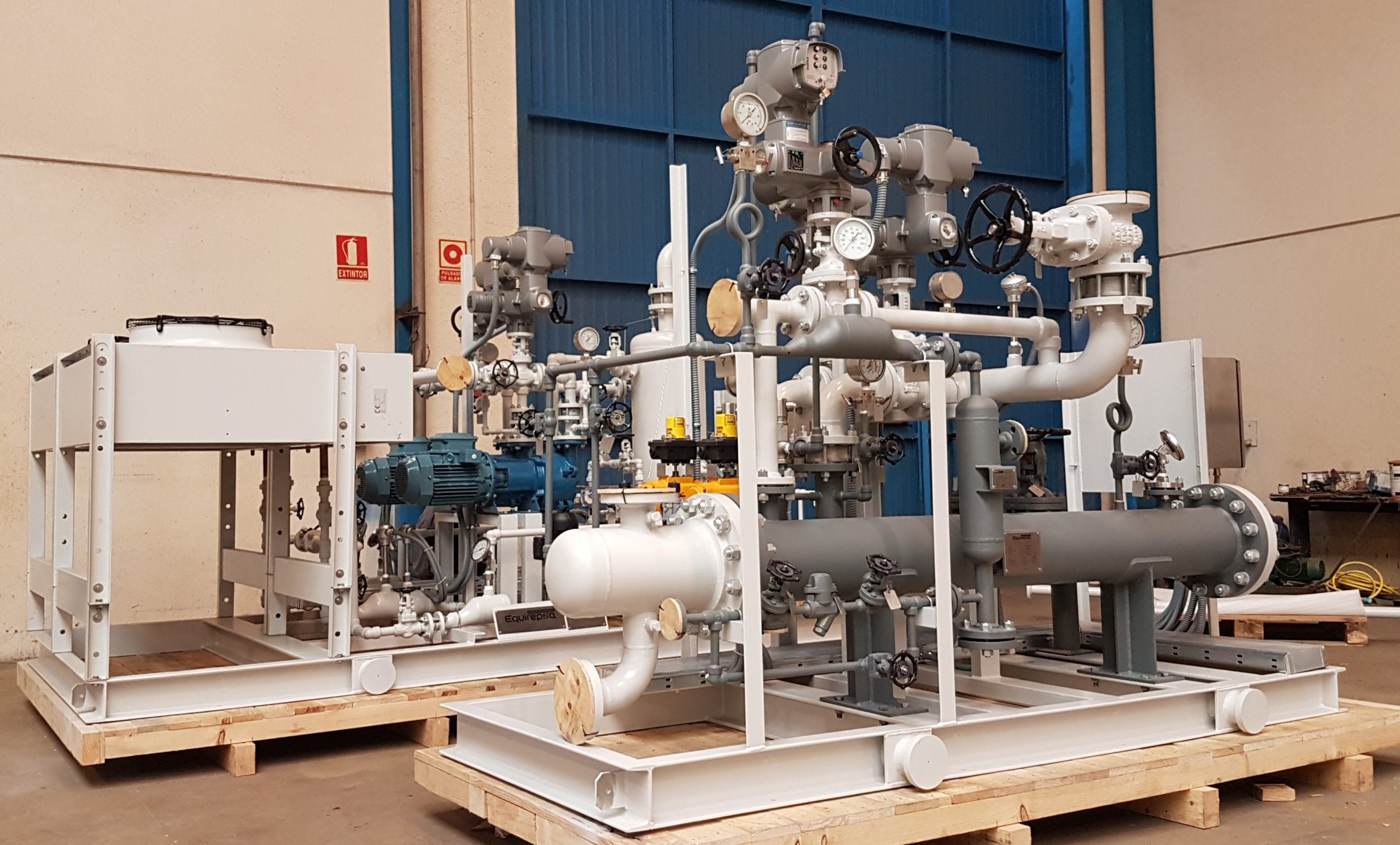

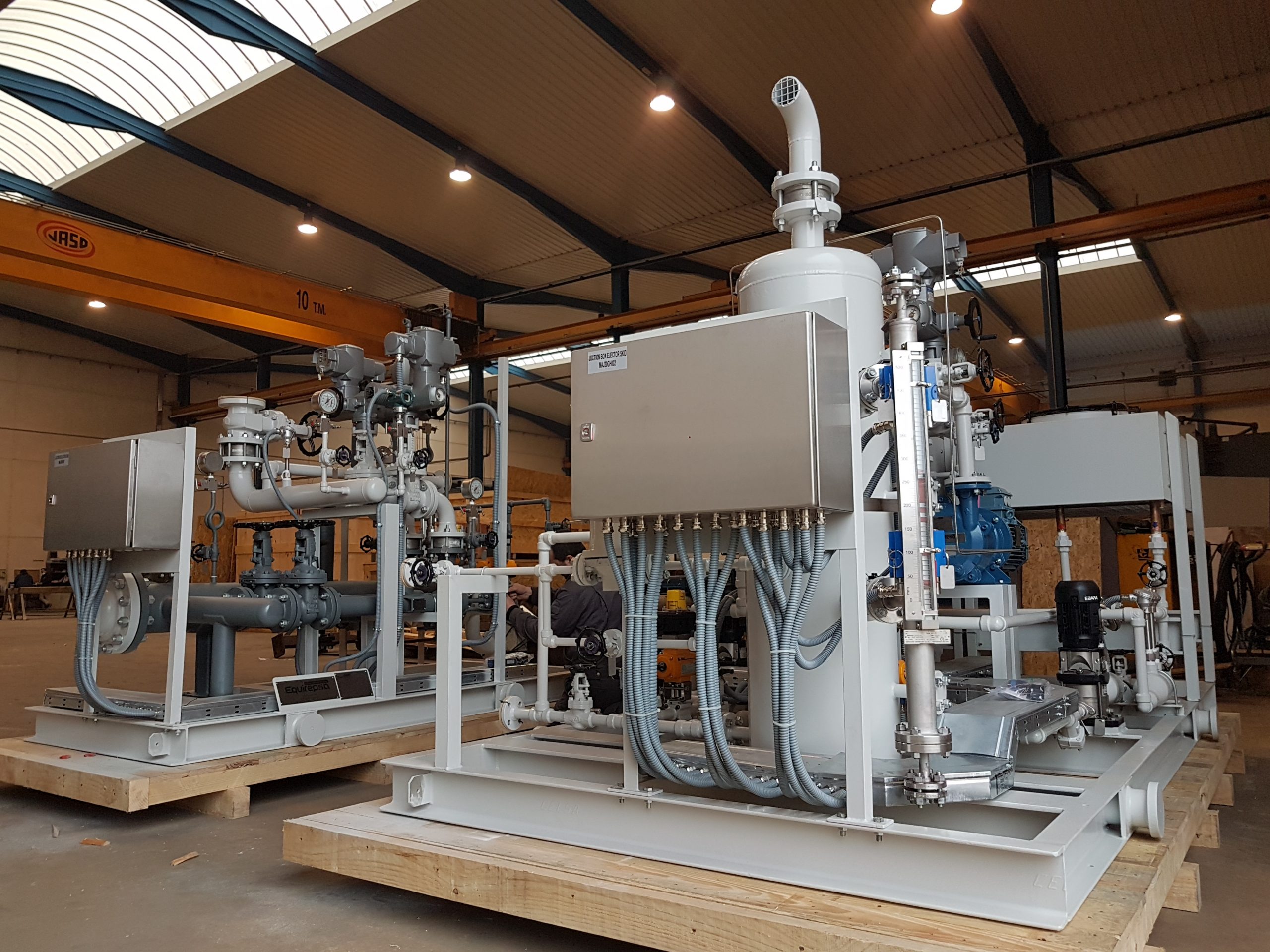

Hybrid Vacuum System

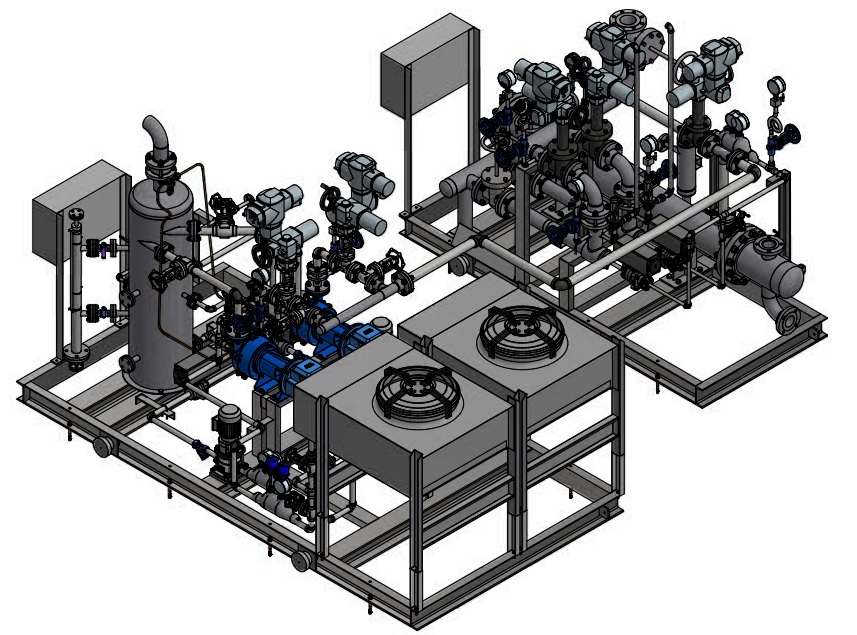

3D Detail of the Vacuum System
