Soap Drying Process Vacuum System
Description:
Three Stages Vacuum System for a Soap Vacuum Drying Process.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy installation at customer´s premises.
Capacity:
Suction Pressure: 15 Torr (20 mbar abs)
Suction Flow: 92 kg/h steam
Motive steam pressure: 9 bar g (min.)
Cooling water temperature: 32ºC (max.)
Supply:Main Equipment: Booster in carbon steel, with nozzle in stainless steel SS304; Mixing Condenser in carbon steel with internal spray nozzle in stainless steel SS316; Vacuum system with liquid ring vacuum Pump in painted cast iron/carbon steel.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.
![](/wp-content/themes/yootheme/cache/3d/CM-buena-1-1-3de4aec9.jpeg)
![](/wp-content/themes/yootheme/cache/7f/CM-3D-1-7fa42955.jpeg)

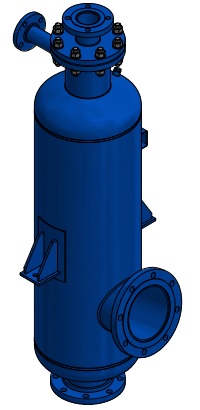

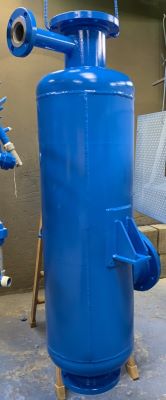

Mixing Condenser / 3D Detail of Mixing Condenser
![](/wp-content/themes/yootheme/cache/dc/GV-buena-1-dc7f2d78.jpeg)
![](/wp-content/themes/yootheme/cache/0b/GV-3D-2-0bdd252a.jpeg)

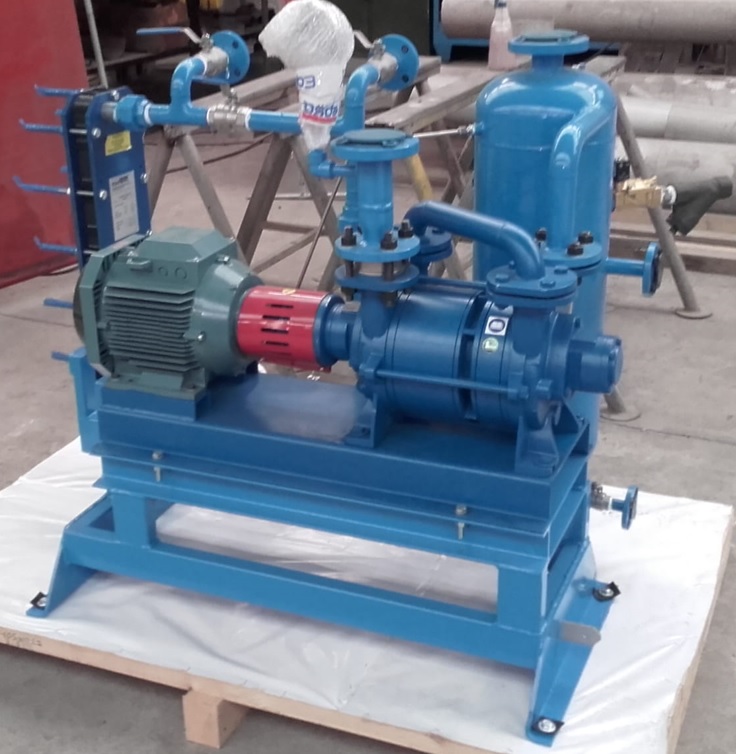

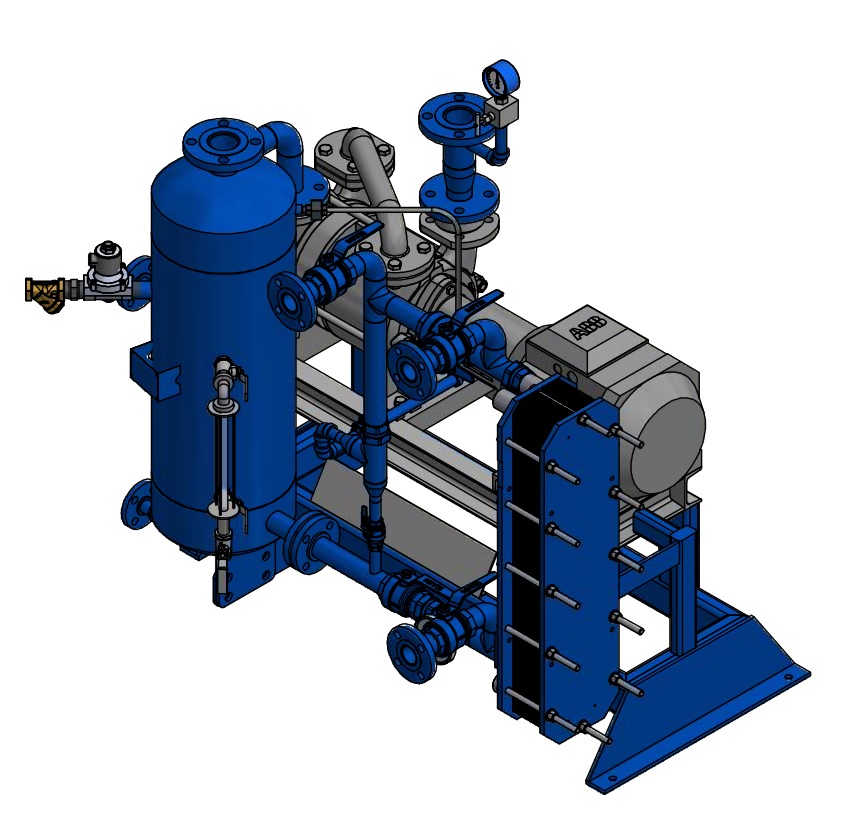

Vacuum System with pump (total recirculation) / 3D Detail of Vacuum System with Pump
