Steam Jet Heater for Hot Water Tank

1 Steam Jet Heater for hot water Tank in a Food Industrial Plant. Materials: Completely in AISI-316.

EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy installation at customer´s premises.

Water flowrate to be heated: 7848 kg/h.
Water temperature: 40 ºC.
Water outlet temperature: 60 ºC.
Steam heating pressure: 2,3 bar a.
Size: DN50.

Supply: 1 Tank Steam Jet Heater. Equipment includes flange for connection to motive fluid.

With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

Tank Steam Jet Heater

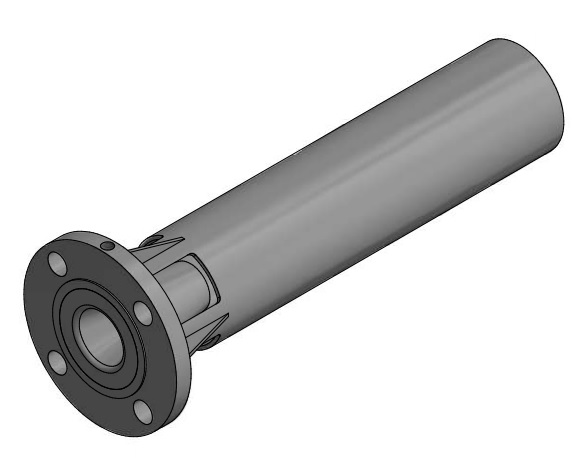

3D Detail of the equipment
