Description:
Steam Syphon for pits emptying in a chemical industrial plant completely in SS316L.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Capacity:
Water flowrate to be evacuated: 1000 kg/h.
Suction pressure: -0,3 barg.
Suction temperature: 20ºC.
Motive Fluid: Steam at 6 barg (dry saturated).
Supply:
Steam Syphon with their respective flanges for connection to suction fluid and discharge lines.
With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.
Steam Syphon

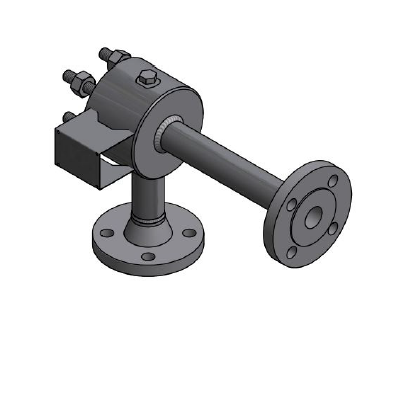

3D Detail of the equipment
