Description:
Tank Mixing System comprised by 4 Mixing Eductors model EMT-40, stirring the fluid into a crude palm oil tank in a edible oils and fats plant.
EQUIREPSA designs and supplies customized equipment, including technical data sheet, general arrangement and assembly drawings, material certificates, installation manual and operating instructions for easy installation at customer´s premises.
Capacity:
4 Mixing Tank Eductors designed to stir and blend the fluid in a tank of 420 m3 using 45 m3/h of motive fluid at 3,5 bar (g).
Supply:
Main equipment: 4 Mixing Eductors in AISI-316L.
With own technology, EQUIREPSA offers customized solutions for every case and customer, which includes: design, manufacture, supply of equipment and supervision of commissioning and start-up (under request) of our equipment.

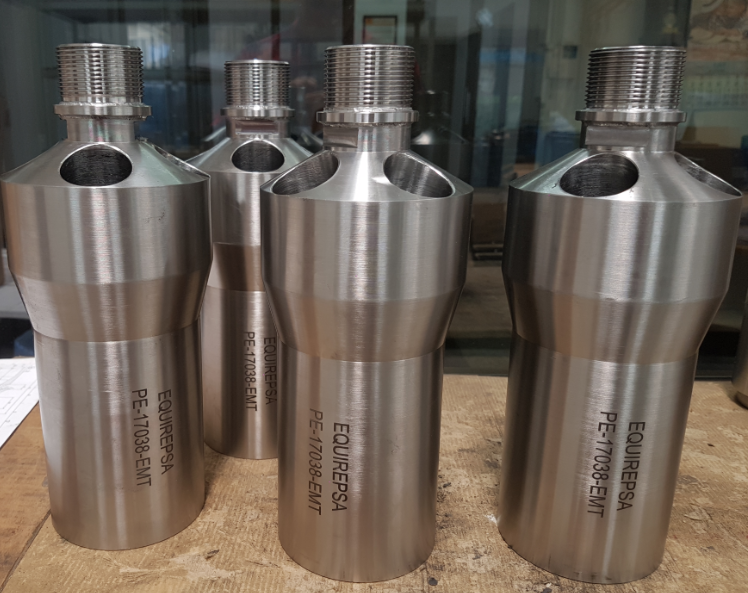

Mixing Eductors

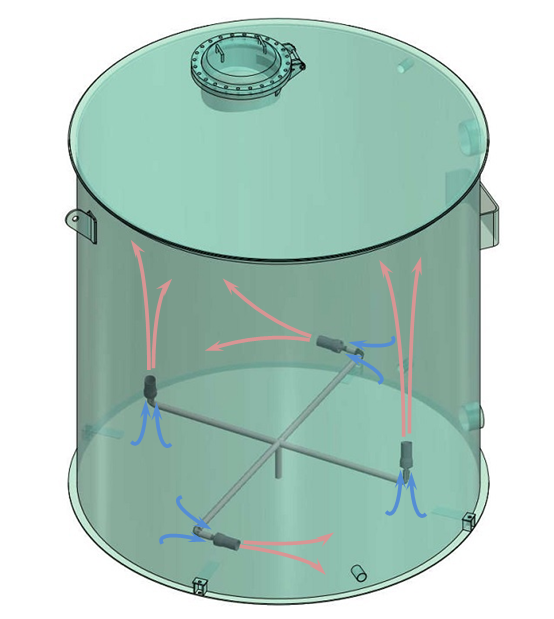

Arrangement of Mixing Eductors
