Vacuum Group with chilled water
Description:
Vacuum Group with chilled water (5ºC) for Edible Oils Deodorization Plant in continuous service. EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy installation at customer´s premises.
Capacity:
Suction pressure: 1 Torr
Suction flowrate: 250 kg/h steam
Suction temperature: 70-100ºC
Cooling water temperature: 5ºC
Supply:
Main Equipments: Boosters, Barometric Condensers, Ejectors and Plates Heat Exchangers.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, commisioning and start-up (under request) of our equipment.

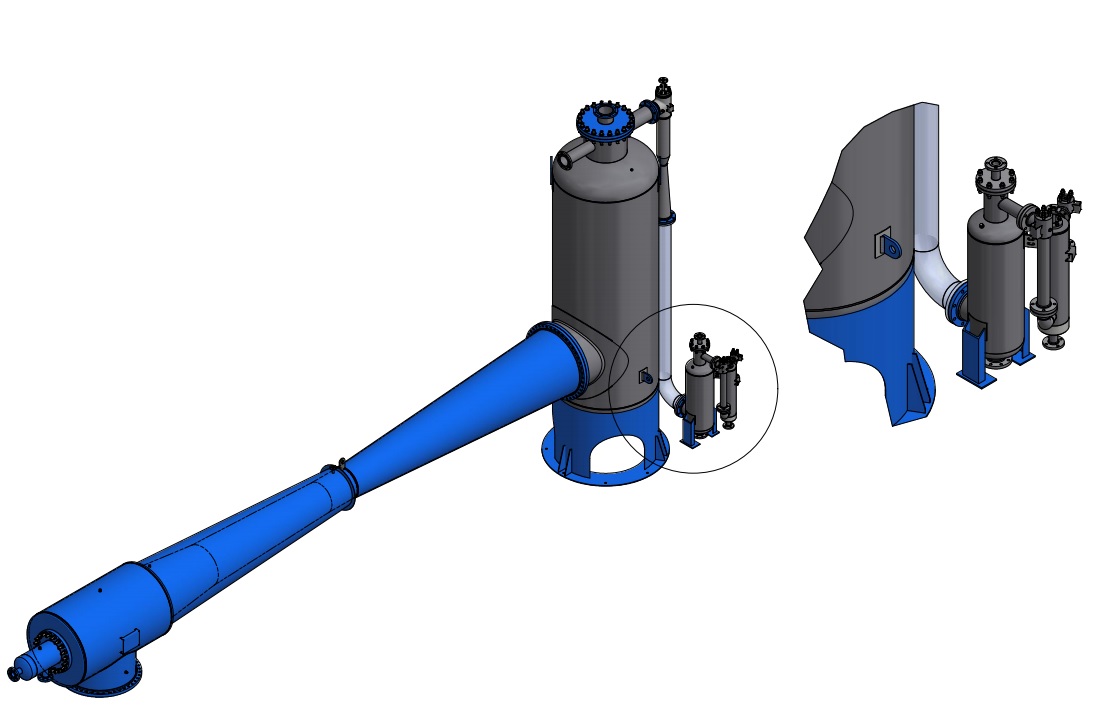

3D Detail of the Equipment

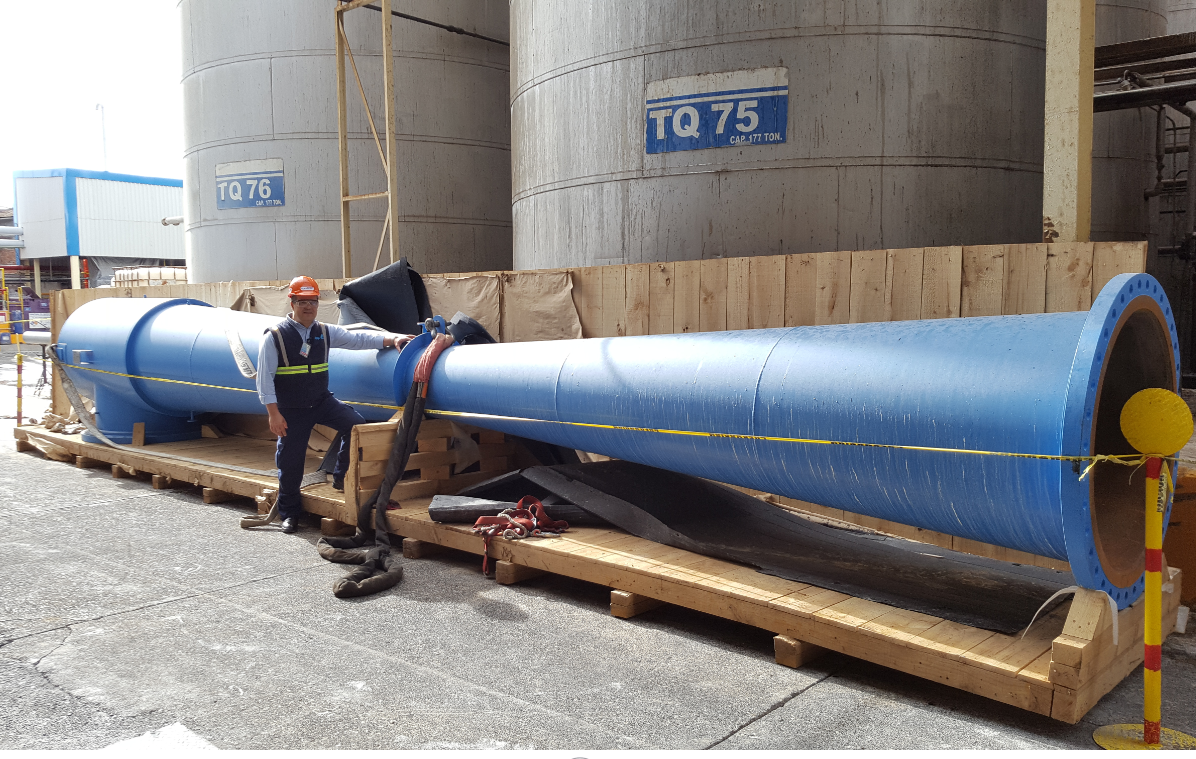

Booster

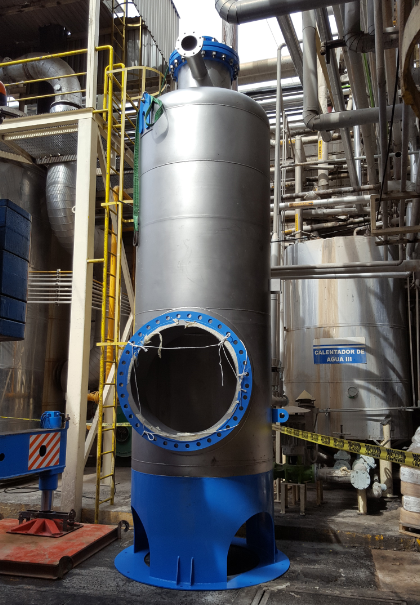

Barometric Condenser

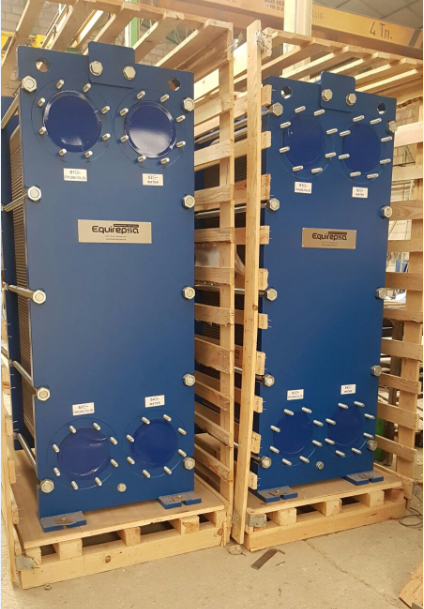

Plates Heat Exchangers
