Vacuum System for a Evaporation of Black Liquor in a Pulp & Paper Plant
Vacuum System for extraction of a mixture of steam and air from a Condenser in a Pulp & Paper Plant.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Suction Pressure: 80 mbar abs
Suction Flow: 2500 m3/h

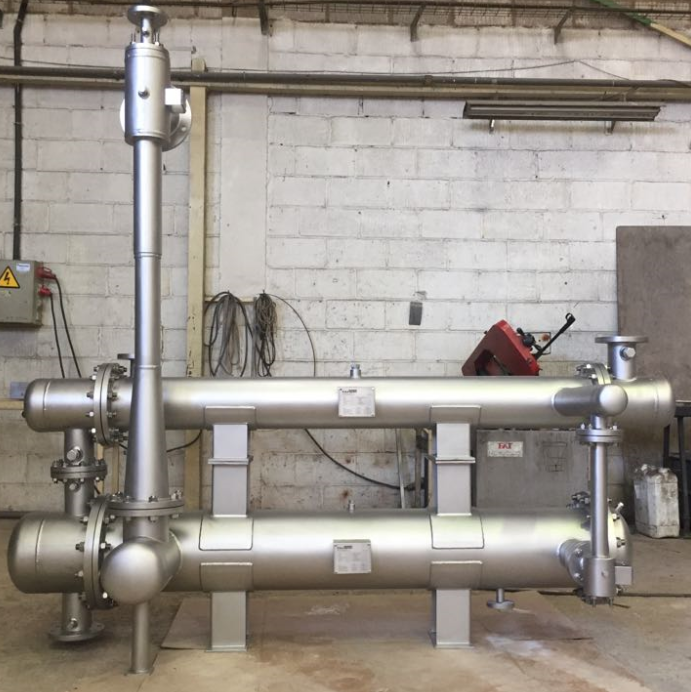

Ejectors, Surface Condensers, Piping and Assembly in 1 skid.
With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

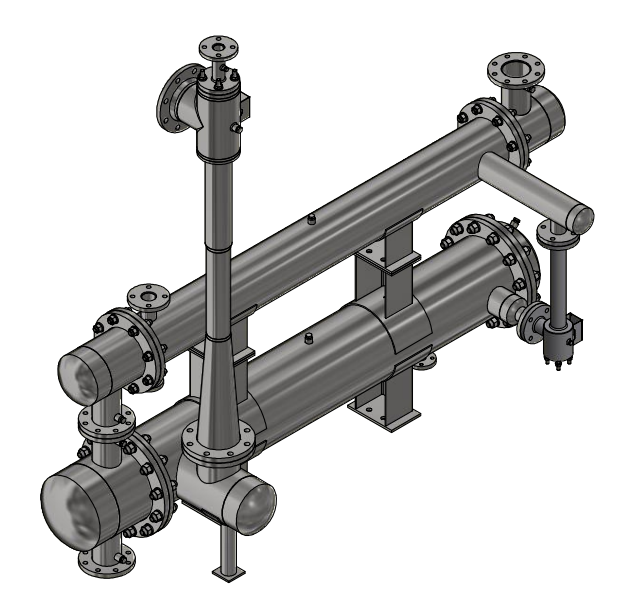

3D Detail of the Vacuum System
