Vacuum System for a Power Plant Steam Turbine Condenser
Vacuum System for extraction of a mixture of steam and air from a Turbine Condenser in a Power Plant.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Suction Pressure: 34 mbar abs
Steam Suction Flow: 22,5 kg/h
Air Suction Flow: 10,2 kg/h
Holding Ejectors and Start-up Ejector with its Silencer, Surface Condensers, Valves & Instrumentation, Piping and Assembly in 1 skid.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

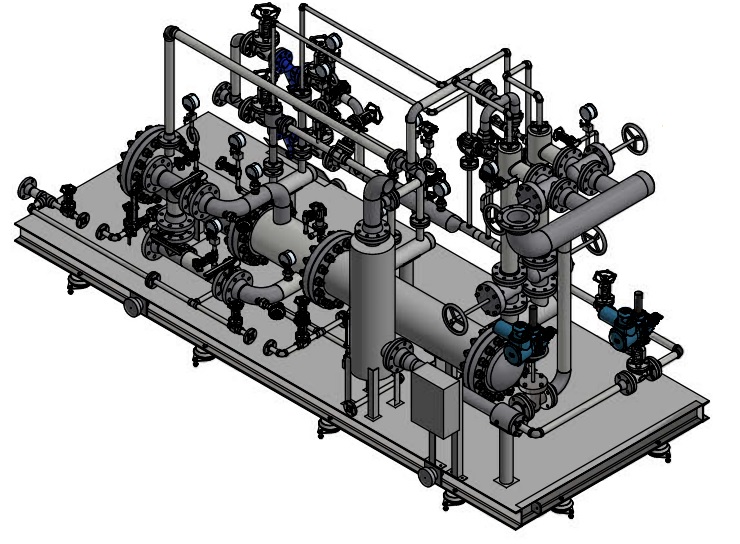

3D Detail of the Vacuum System
