Vacuum System for a Power Plant Steam Turbine Condenser

Description:
Vacuum System for extraction of a mixture of steam and air from a Turbine Condenser in a Power Plant.

EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy installation at customer´s premises.

Capacity:
Suction Pressure: 34 mbar abs.
Steam Suction Flow: 44,7 kg/h.
Air Suction Flow: 20,4 kg/h.
Temperature: 21,9ºC.

Supply:Holding Ejectors and Start-up Ejector with its Silencer, Surface Condensers, Valves & Instrumentation, Piping and Assembly in 1 skid.

With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

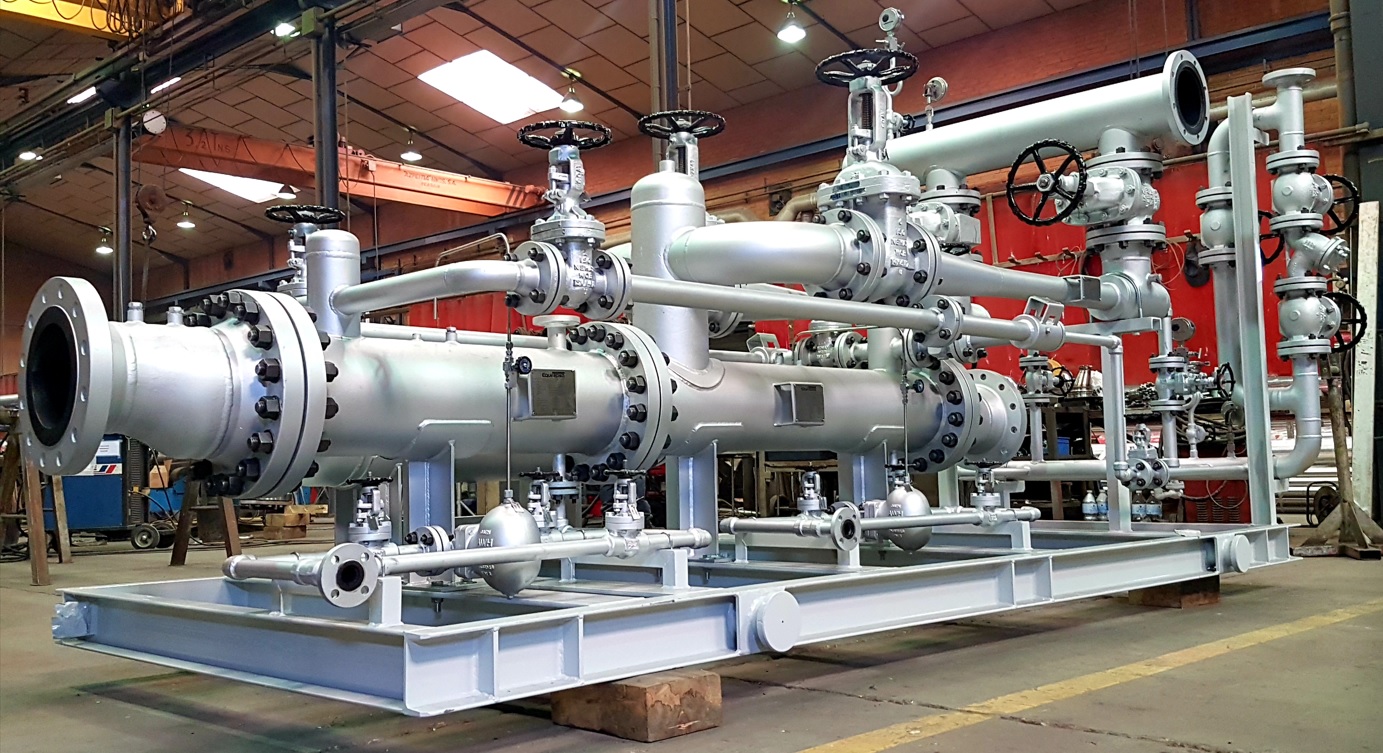

Vacuum Group

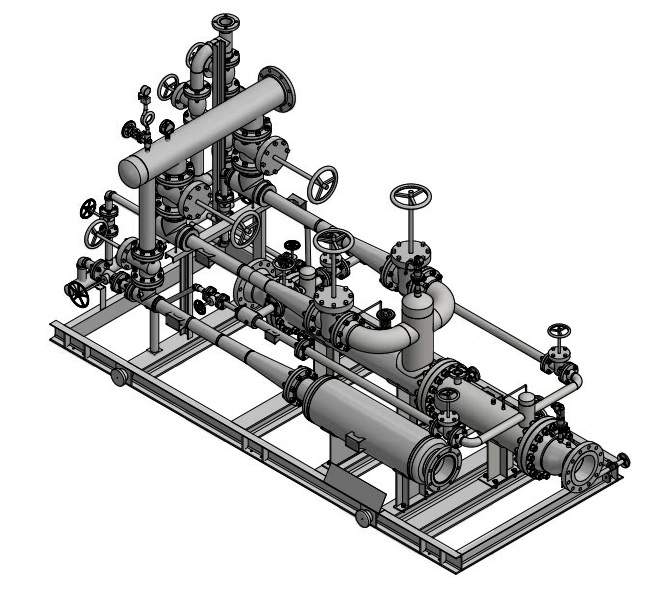

3D Detail of the vacuum group
