Vacuum System for extraction of a mixture of steam and air from a Turbine Condenser in a Power Plant.
EQUIREPSA designs and supplies customized equipment including technical documentation: Datasheet, general arrangement drawing of equipment, mechanical calculation, welding dossier, materials certificates and user manual with instructions for installation and operation.
Suction Pressure: 34 mbar abs.
Steam Suction Flow: 22,3 kg/h.
Air Suction Flow: 10,2 kg/h.
Holding Ejectors and Start-up Ejector with its Silencer, Surface Condensers, Valves & Instrumentation, Piping and Assembly in 1 skid.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

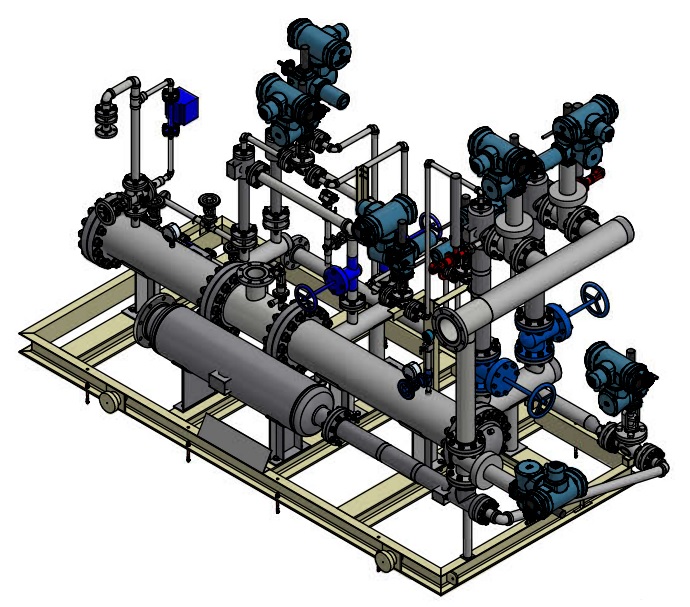

Vacuum System / 3D Detail of the vacuum system
