Description:
Vacuum System for extraction of a mixture of steam and air from a Turbine Condenser in a Power Plant.
EQUIREPSA designs and supplies customized equipment including technical documentation: Datasheet, general arrangement drawing of equipment, mechanical calculation, welding dossier, materials certificates and user manual with instructions for installation and operation.
Capacity:
Suction Pressure: 34 mbar abs.
Steam Suction Flow: 44,9 kg/h.
Air Suction Flow: 20,4 kg/h.
Temperature: 21,9ºC.
Supply:
Holding Ejectors and Start-up Ejector with its Silencer, Surface Condensers, Valves & Instrumentation, Piping and Assembly in 1 skid.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

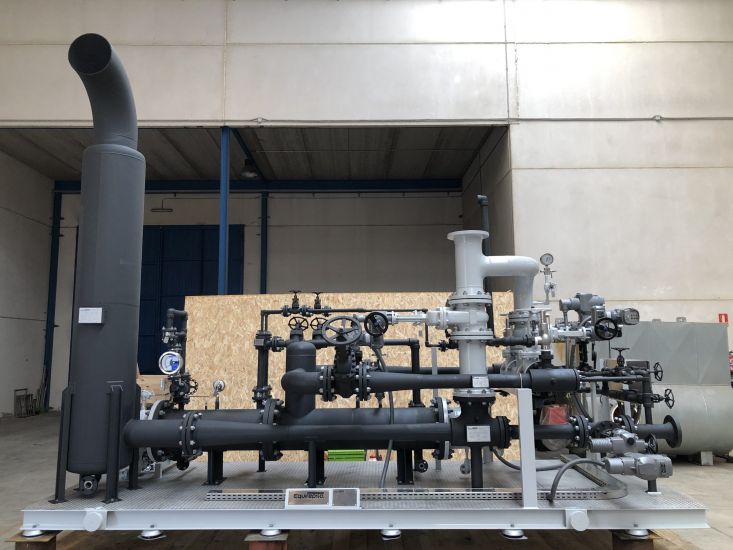

Vacuum System

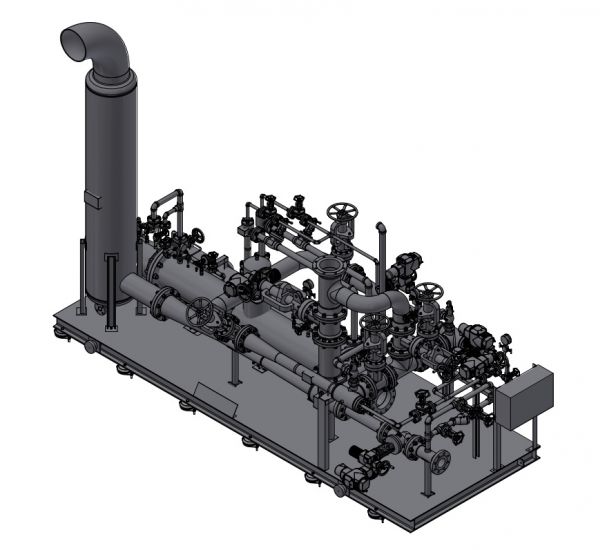

3D Detail of Vacuum System
