Description:
Vacuum System for extraction of a mixture of steam and air from a Turbine Condenser in a Power Plant.
EQUIREPSAdesigns and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Capacity:
Suction Pressure: 170 mbar abs.
Steam Suction Flow: 34,5 kg/h.
Air Suction Flow: 10,5 kg/h.
Temperature: 54ºC.
Supply:
Holding Ejectors, Surface Condensers, Valves & Instrumentation, Piping and Assembly in 1 skid.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, commissioning and start-up (under request) of our equipment.

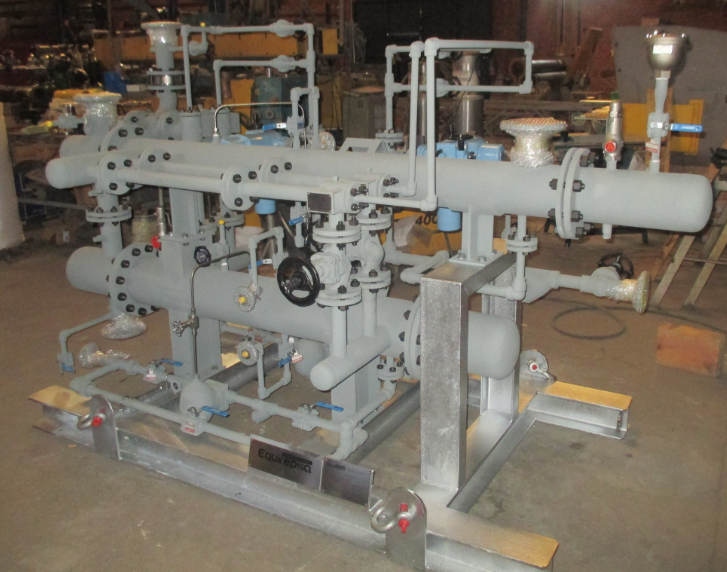

Vacuum System

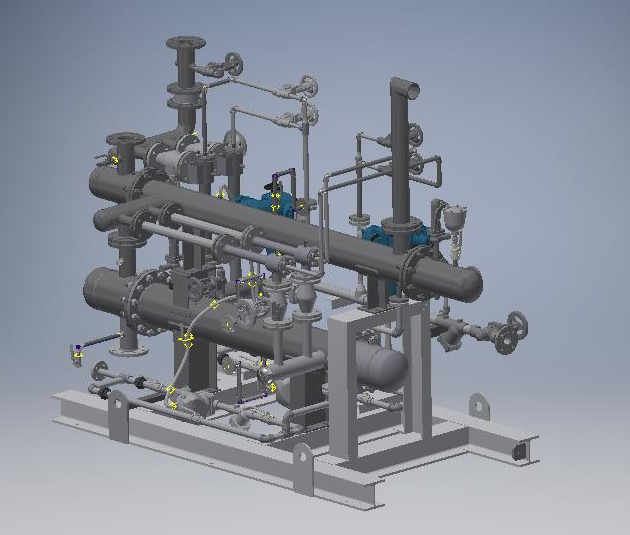

3D Detail of the Vacuum System
