Description:
Vacuum System for air extraction at Refinery revamp.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy installation at customer´s premises.
Capacity:
Volume: 500 m3.
Final Pressure: 130 mmHg abs.
Temperature: 38ºC.
Supply: Start-up Ejector, Surface Condenser, Valves & Instrumentation, Piping and Assembly in 1 skid.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

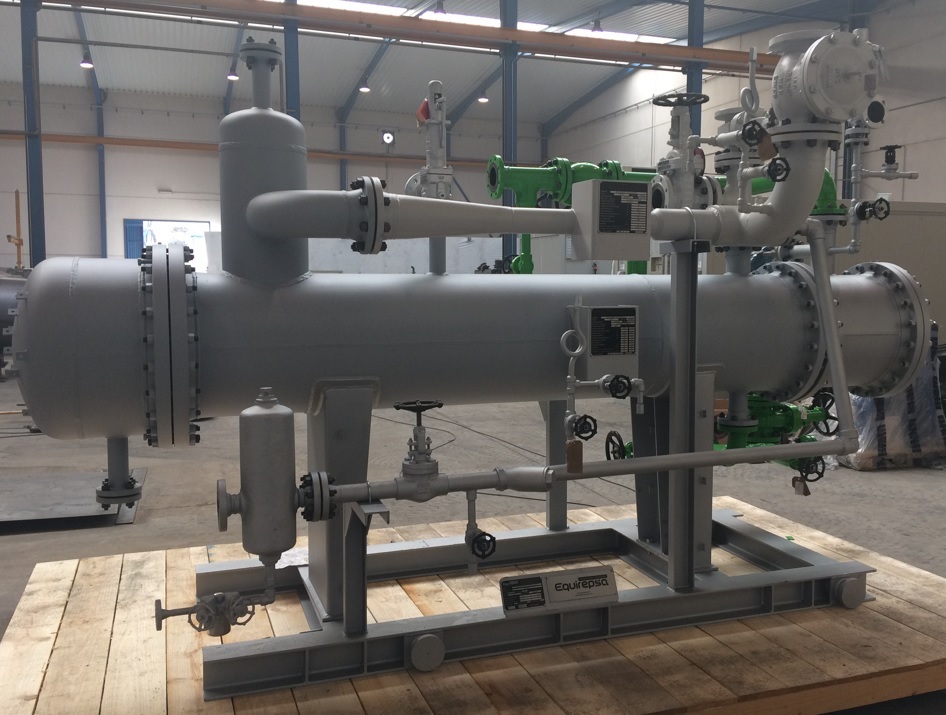

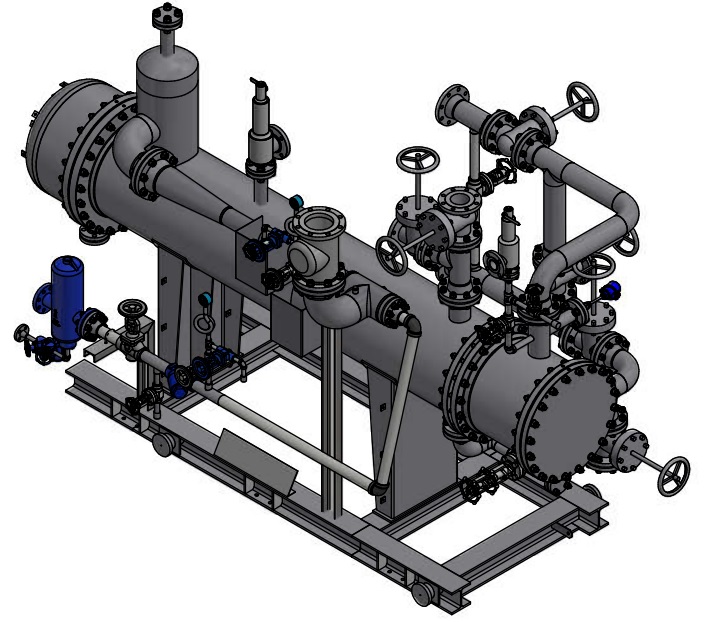

Vacuum System / 3D Detail of the Vacuum System
