Vacuum System for a Vacuum Gas Extraction in a Petrochemical Plant

Vacuum System for extraction of a mixture of steam and air from a Turbine Condenser in a Gas Compressor Unit.

EQUIREPSA designs and supplies customized equipment including technical documentation: Datasheet, general arrangement drawing of equipment, mechanical calculation, welding dossier, materials certificates and user manual with instructions for installation and operation.

Suction Pressure: -0,88 kg/cm2 g.
Steam Flow: 39,6 kg/h.
Air Flow: 15,3 kg/h.
Temperature: 35,8 ºC.

Holding Ejectors and Start-up Ejector with its Silencer, Surface Condensers, Valves & Instrumentation, Piping and Assembly in 1 skid.

With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

Vacuum System

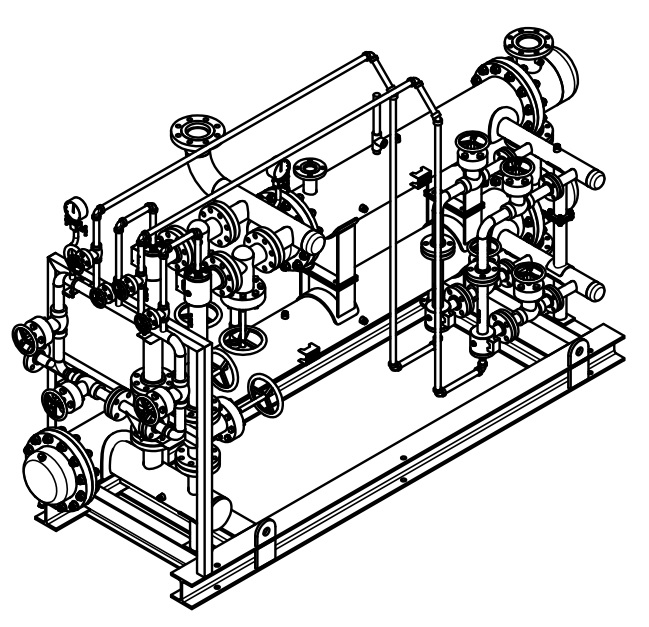

3D Detail of the Holding Vacuum System / 3D Detail of the Start-Up Ejector and Silencer
