Description:
Vacuum System for Edible Oil Deodorizing Plant in continuous service, comprised by:
- 2 Boosters.
- 2 Mixing Condensers.
- 2 Holding Steam Ejectors + 1 Start-up Ejector.
EQUIREPSA designs and supplies customized equipment, including technical data sheet, general arrangement and assembly drawings, material certificates, installation manual and operating instructions for easy installation at customer´s premises.
Capacity:
Suction pressure: 1.9 mbar abs.
Suction flowrate: 167 kg/h steam + 4.4 kg/h air + 0.7 kg/h fatty acids.
Suction temperature: 70ºC.
Cooling water temperature: 34ºC (max.).
Motive steam pressure: 8 bar g (dry saturated) (min.).
Supply:
Main Equipments: Boosters, Ejectors, Barometric Condensers.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, commissioning and start-up (under request) of our equipment.
Barometric Condensers and Ejectors

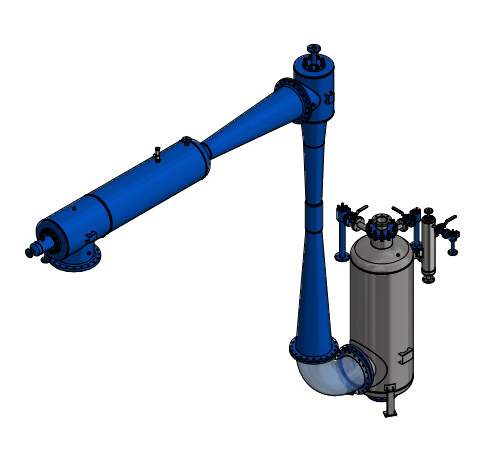

3D Detail of the System
