Description:

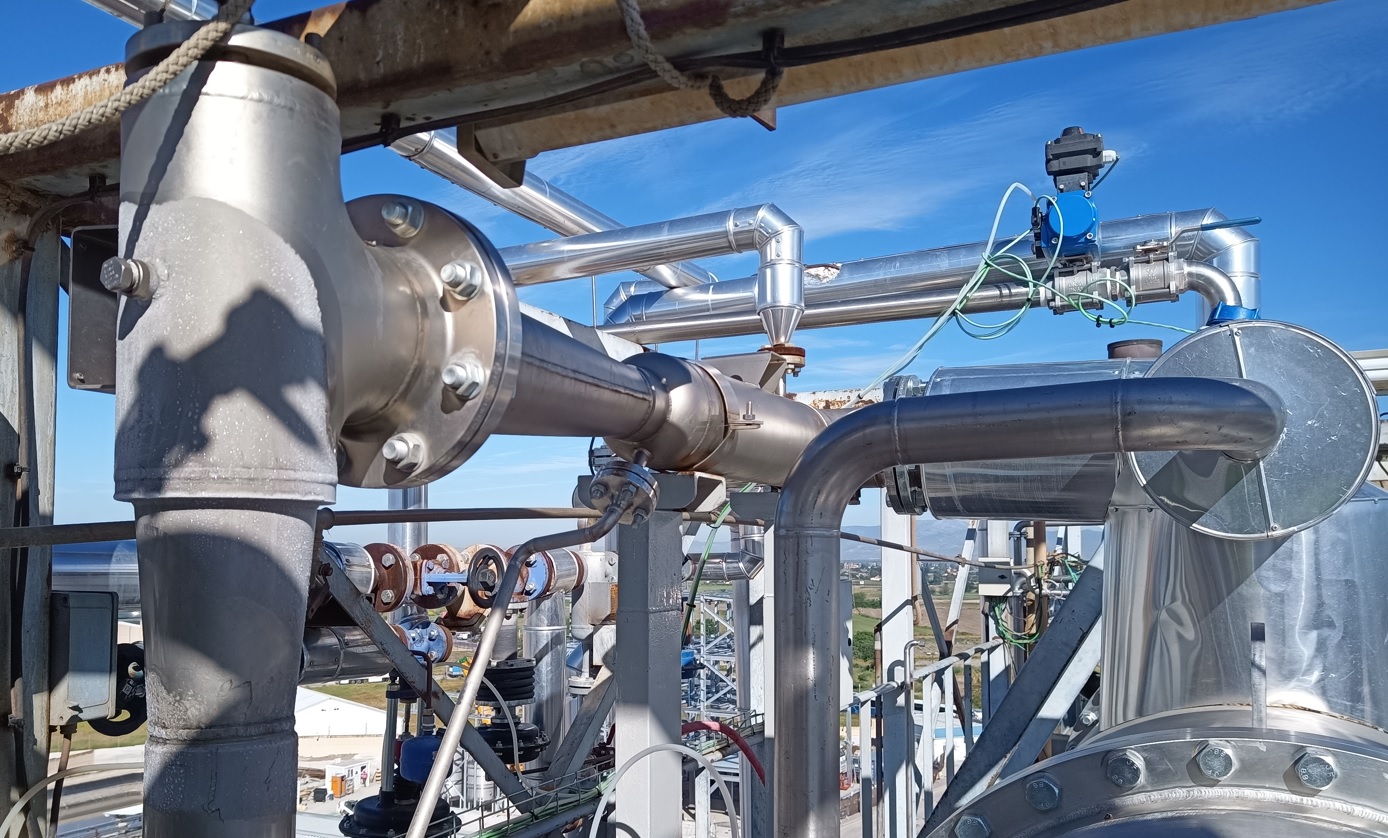

1 Vacuum System for gases extraction in a Perfume Plant.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Capacity:
Suction Pressure: 1 mmHg a.
Motive Steam: 6 bar g.
Cooling Water Temperature: 35ºC.
Supply:

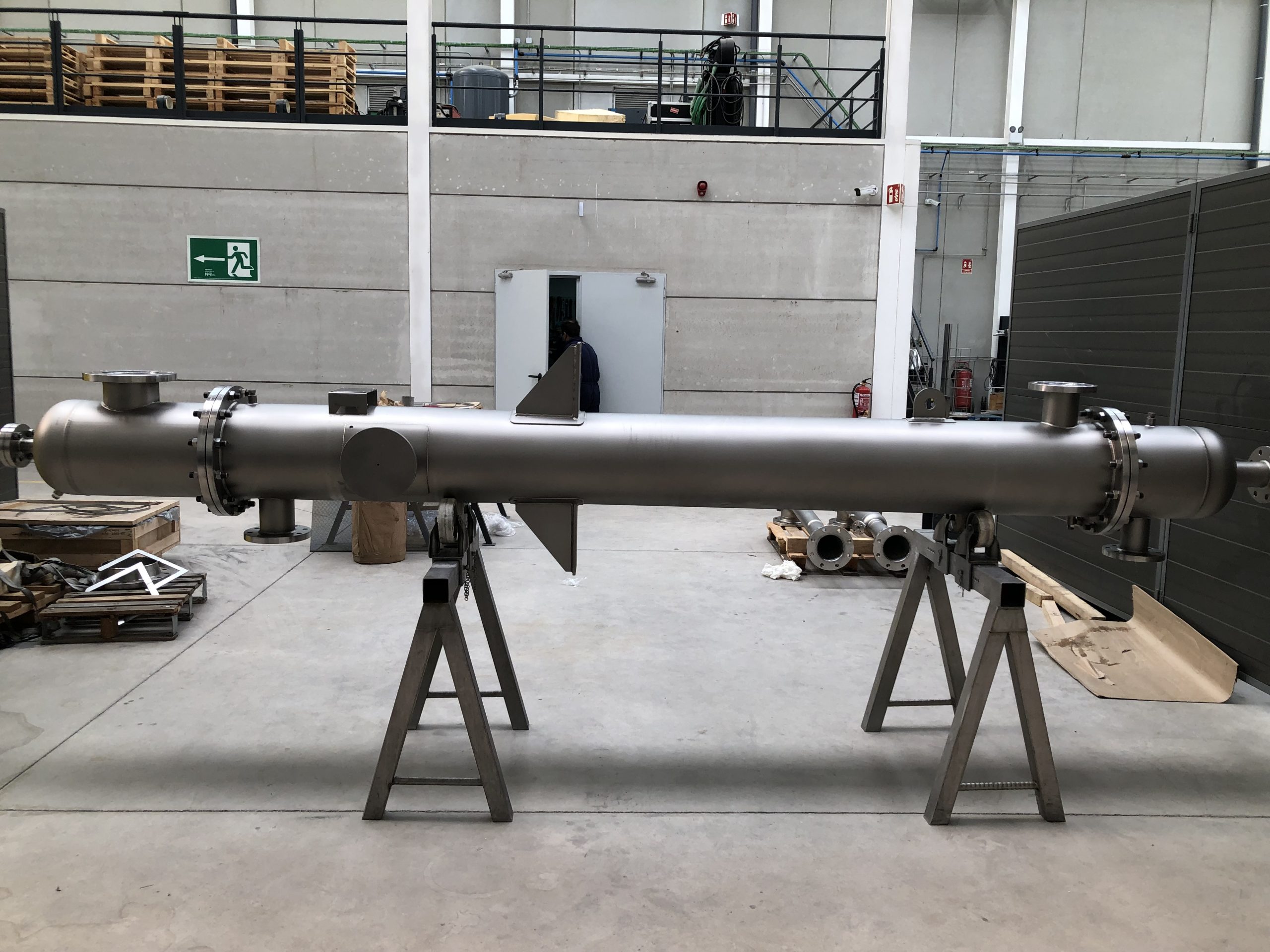

First stage Booster with steam jacket, second stage Booster and Shell & Tube Vertical Condenser.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

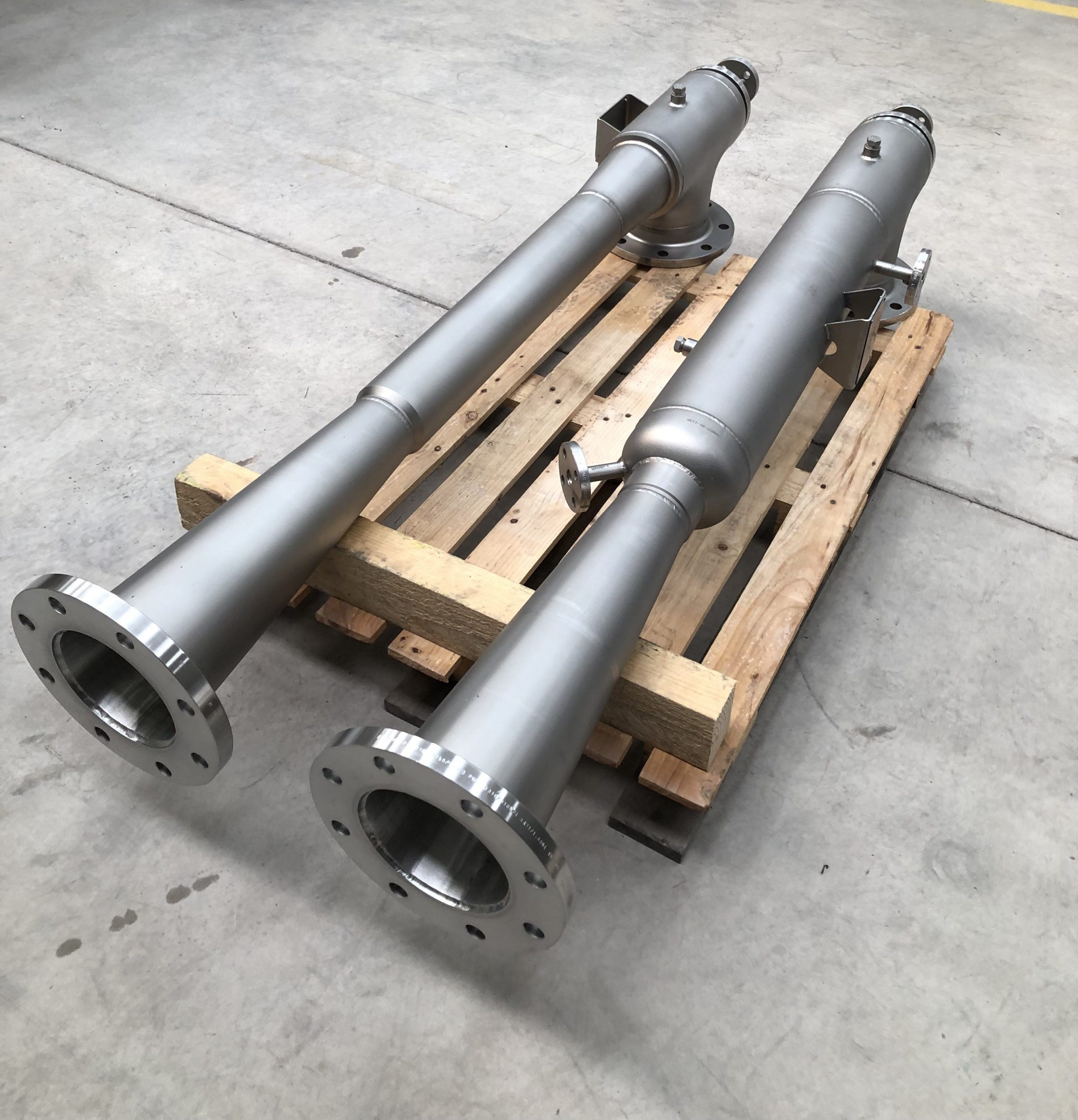

Condensers & Boosters
3D Detail of the Vacuum System
