Description:
Vacuum System for extraction of a mixture of steam and air from a Air Cooled Condenser in a Power Plant.
EQUIREPSA designs and supplies customized equipment, including the sending of general arrangement drawings, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Capacity:
Suction Pressure: 34 mbar abs
Steam Suction Flow: 17,9 kg/h
Air Suction Flow: 8,2 kg/h
Temperature: 22ºC
Supply:
Main Equipment: Steam Ejectors, Shell and Tube Condenser and 2 vacuum units with Liquid Ring Vacuum Pump and total recirculation of the service liquid with Aircooler, Valves and Instrumentation, Piping and 2 separate baseframes (one for Ejector-Condenser and another one for both Liquid Ring Vacuum Pumps).
With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.
Vacuum System

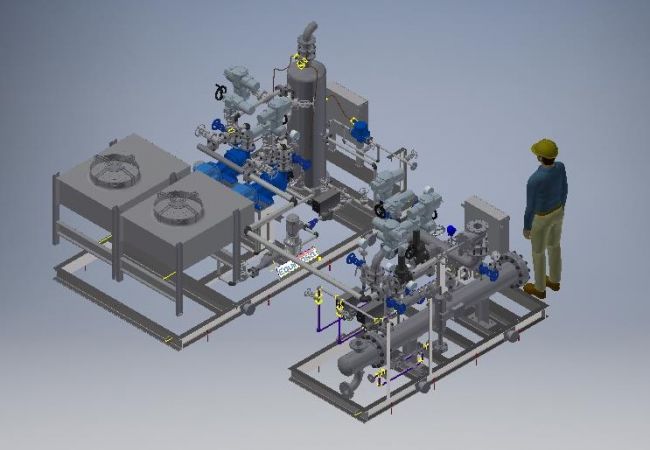

3D Detail of the Equipment
