Description:
Vacuum System with Liquid Ring Vacuum Pump and partial recirculation for an animal feed additives plant. EQUIREPSA designs and supplies customized equipment, including the sending of general arrangement drawings, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Capacity:
Suction pressure: 147 mbar abs
Suction Flow: 2 kg/h air + 0,25 kg/h steam + 0,9 kg/h propionic acid
Temperature: 41 ºC
Supply:
Main Equipment: Liquid Ring Vacuum Pump with Electric Motor, Separator Tank, Instruments, Valves and Interconnecting Piping. Assembly in a baseframe.
With own technology, EQUIREPSA offers customized solutions for every case and customer, which includes: design, manufacture, supply of equipment and supervision of commissioning and start-up (under request) of our equipment.

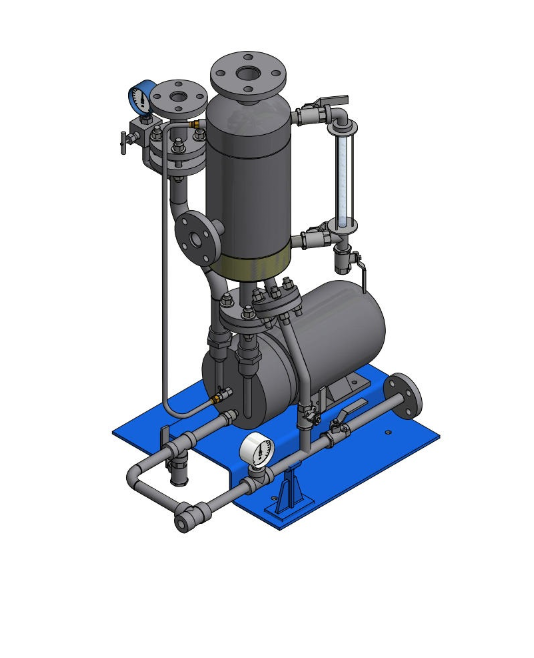

3D Detail of the Equipment

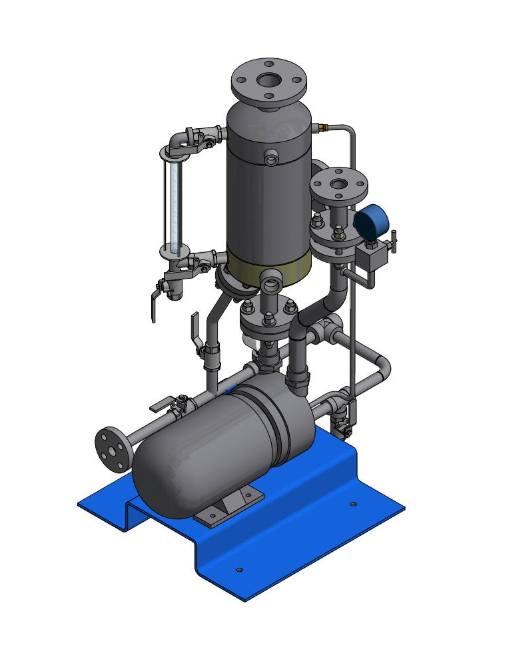

3D Detail of the Equipment

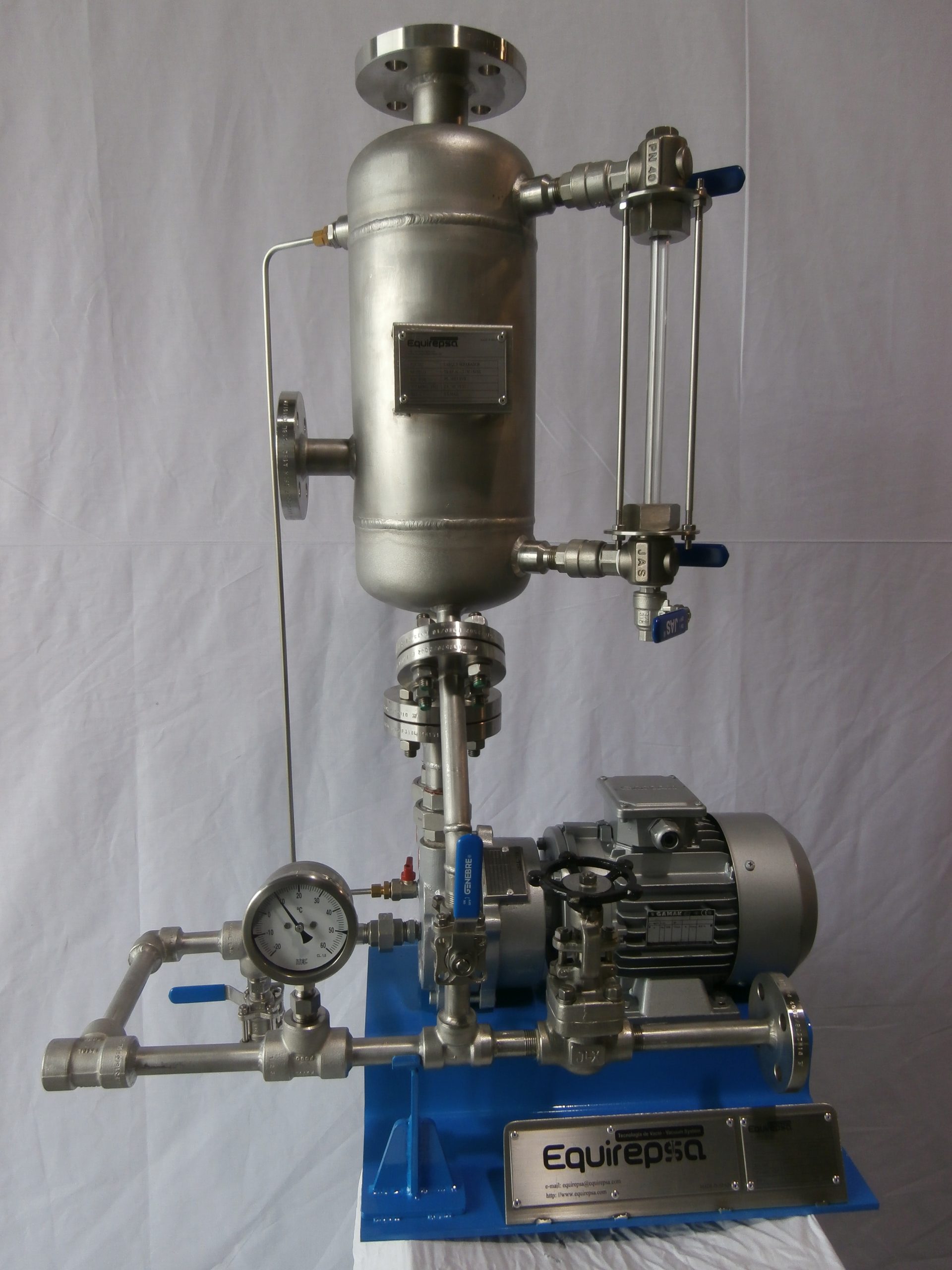

Vacuum System

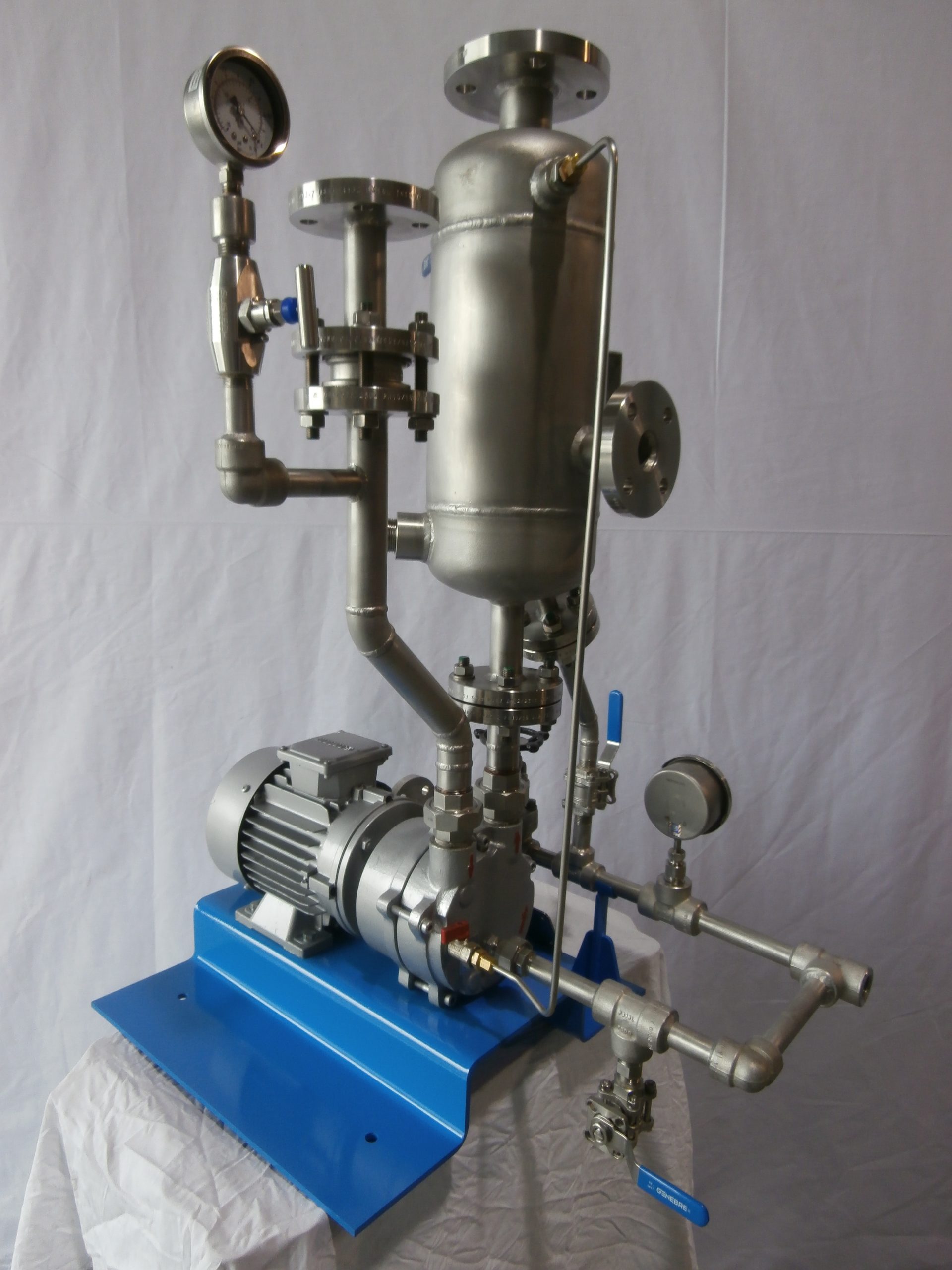

Vacuum System
