Description:

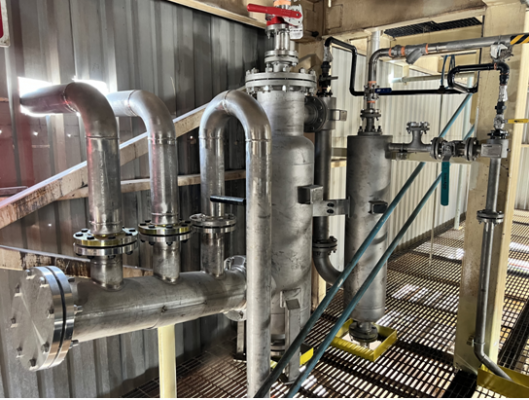

3 x Vacuum Systems for Edible Oils Bleaching Plants.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Capacity:
• Suction pressure: 50 mm Hg abs.
• Steam suction flow: 270 kg/h.
• Air suction flow: 20 kg/h.
• Temperature: 32ºC (max.).
• Motive steam pressure: 8 bar g (dry saturated) (min.).
Supply:
Ejectors and Mixing Condensers, all completely in SS316.
With in-house technology EQUIREPSA offers customized solutions for every case, which includes: design, manufacture, supply, commissioning and start-up (under request) of our equipment.
Vacuum Systems

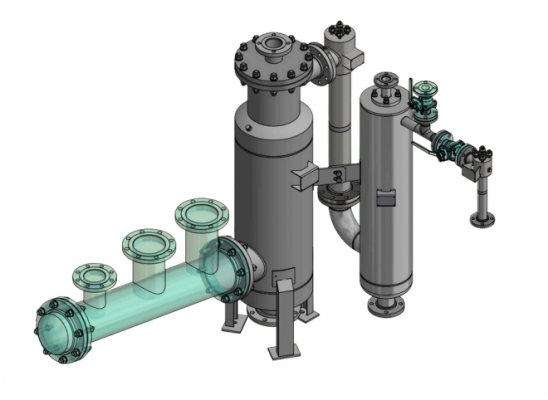

3D Detail of the equipment
