Description:
4 Vacuum Systems for gases extraction (steam, nitrogen and other compounds) in a Chemical Plant.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy assembly at customer´s premises.
Capacity:
Suction Pressure: 0,09-0,41 bar abs.
Motive Steam: 12 bar g.
Total Suction Flow: 25-152 kg/h.
Temperature: 25ºC.
Supply:
Holding Ejectors, Shell & Tubes Vertical Condensers, Droplet Separators, Piping and Assembly in Skid.
With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.
Vacuum Systems

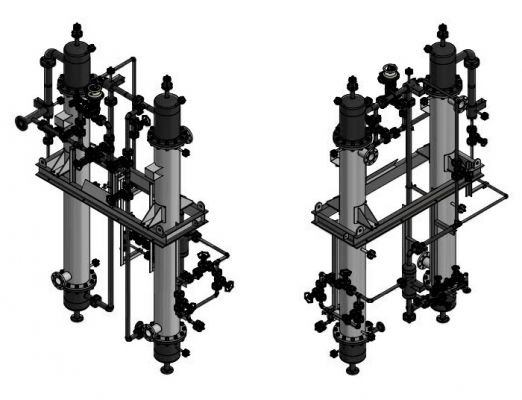

3D Detail of the Vacuum System
