Vacuum Systems for gases extraction in a Chemical Plant

2 Vacuum Systems for gases extraction (steam and inert gases) in a Chemical Plant.

EQUIREPSA designs and supplies customized equipment including technical documentation: Datasheet, general arrangement drawing of equipment, mechanical calculation, welding dossier, materials certificates and user manual with instructions for installation and operation.

Suction Pressure: 0,08 bar abs.
Motive Steam: 12 bar g.
Total Suction Flow: 117 kg/h.
Temperature: 30ºC.

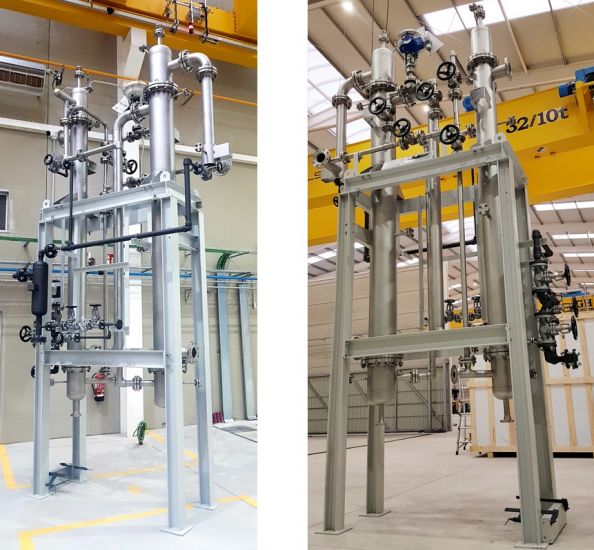

Holding Ejectors, Vertical Condensers, Piping and Assembly in Skid.

With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

Vacuum Systems

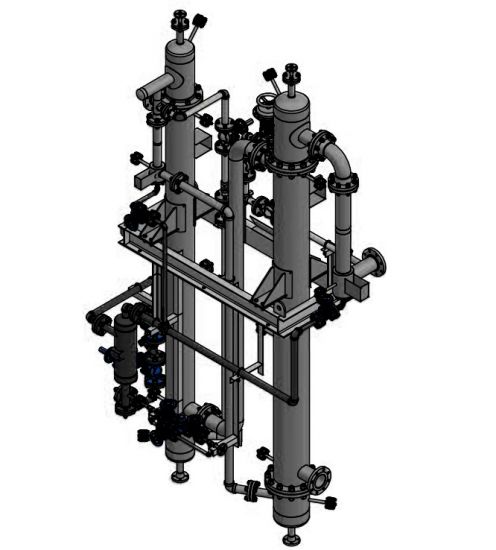

3D Detail of Vacuum System
