Vacuum Systems for the flash tank gas extraction in a Petrochemical Plant

2 Vacuum Systems for the flash tank gas extraction (steam and inert gases) in a Petrochemical Plant.

EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy installation at customer´s premises.

Suction Pressure: -0,9 kg/cm2 g.
Motive Steam: 4 kg/cm2 g.
Total Suction Flow: 49 kg/h.
Temperature: 46ºC.

Holding Ejectors, vertical Condensers, Piping and Assembly in skid.

With in-house technology EQUIREPSA offers customized solutions for every case, which include: design, manufacture, supply, and start-up (under request) of our equipment.

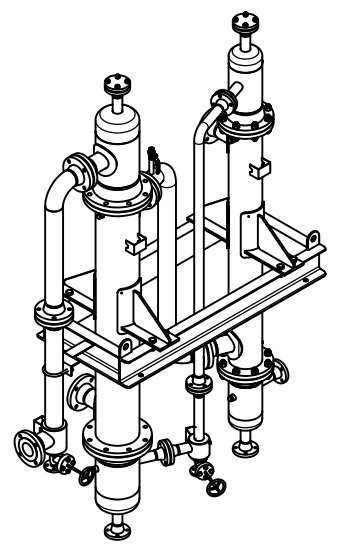

Vacuum Systems / 3D Detail of the Vacuum System
