Venturi Desuperheater for Chemical Plant
Venturi Desuperheater for desuperheating steam in a Chemical Plant. Materials: Carbon Steel with water nozzles in SS-316.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, equipment general arrangement drawing, material certificates, installation manual and operating instructions for easy installation at customer´s premises.
Superheated steam flowrate: 7000-14000 kg/h.
Water flowrate: 54-625 kg/h.
Inlet steam temperature: 165,2-211,4ºC.
Outlet steam temperature: 155ºC.
Main equipment: Venturi Desuperheater with water nozzles. Desuperheater includes flanges for connection to steam and water pipes.
With own technology, EQUIREPSA offers customized solutions for every case and customer, which includes: design, manufacture, supply of equipment and supervision of commissioning and start-up (under request) of our equipment.

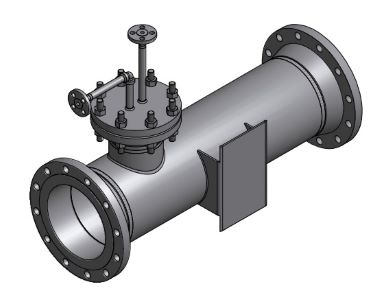

3D Detail of the equipment
