Venturi Mixing Eductor for a Petrochemical Plant
Venturi Mixing Eductor used to produced a Chlorine (gas) – Ethane Dichloride (liquid) premix at the entrance of a reactor for the production of EDC (liquid Ethylene Dichloride) in a Petrochemical Plant. Completely in Hastelloy C-276.
EQUIREPSA designs and supplies customized equipment, including thermal and fluid-dynamic design, general arrangement drawings of each component, group assembly drawing, material certificates, installation manual and operating instructions for easy installation at customer´s premises.
Suction of Chlorine gas, using liquid Ethane Dichloride as motive fluid.
Main Equipment: Venturi Mixing Eductor.
With own technology, EQUIREPSA offers customized solutions for every case and customer, which includes: design, manufacture, supply of equipment and supervision of commissioning and start-up (under request) of our equipment.

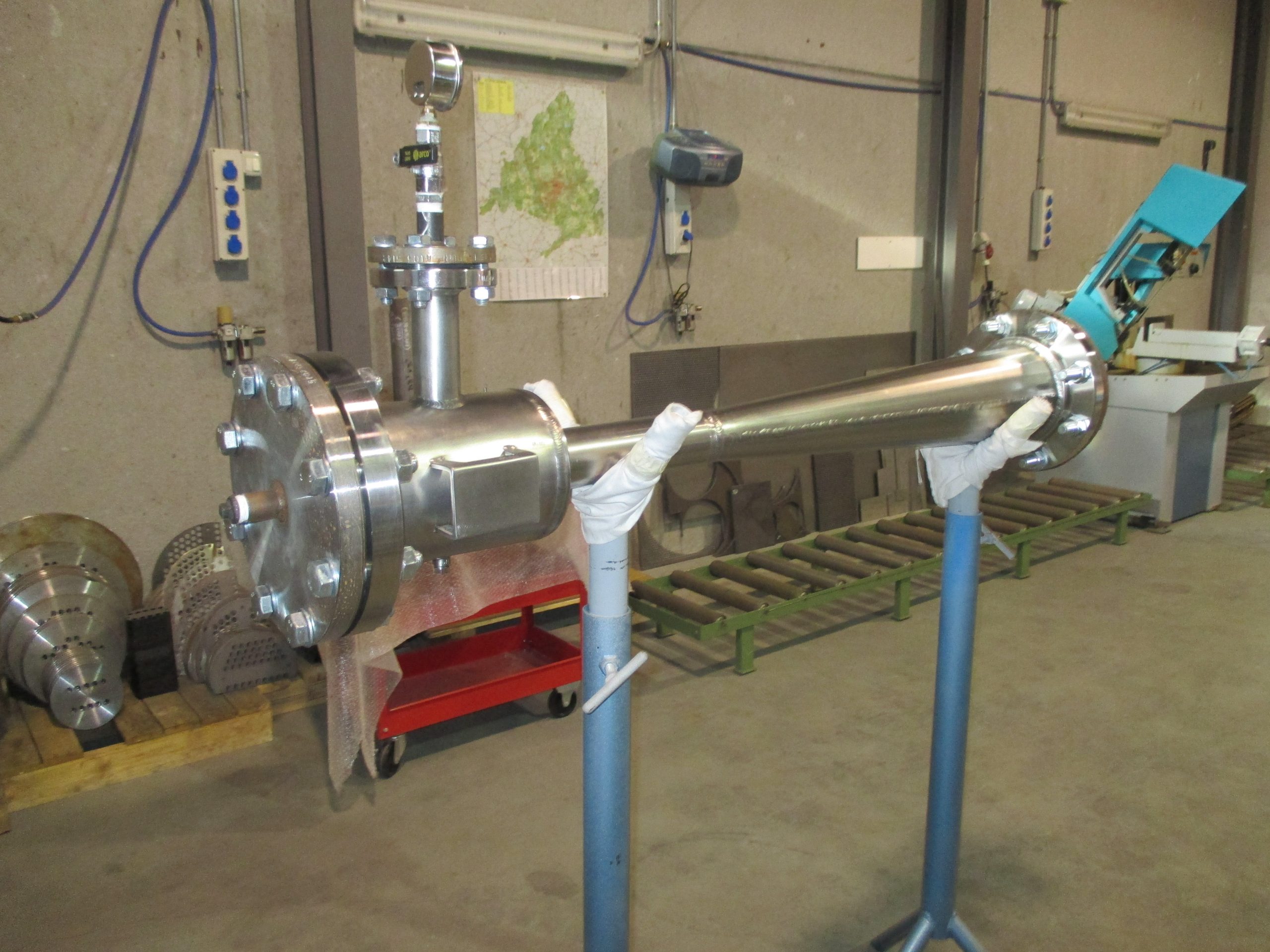

Venturi Mixing Eductor

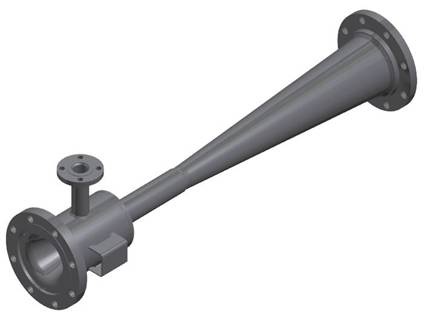

3D Detail of the equipment
